Bosch Rexroth R159B43501
The fixed bearing consists of: Angular-contact thrust ball bearing LGS, slotted nut NMB, suitable for screw ends type◡832, 842
Nominal size [mm]BASA 30 x 5/10
Tightening torque [Nm]65
Note: Tightening torqueMounting with hook wrench (DIN 1810)
Dynamic load capacity C [N]109400.0
Outer diameter D [mm]80.0
Weight [kg]5.92
About This Product
The fixed bearing consists of: Angular-contact thrust ball bearing LGS, slotted nut NMB, suitable for screw ends type◡832, 842
Bosch Rexroth R159B43501
- Genuine, certified Bosch Rexroth product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Nominal size [mm]BASA 30 x 5/10
Tightening torque [Nm]65
Note: Tightening torqueMounting with hook wrench (DIN 1810)
Dynamic load capacity C [N]109400.0
Outer diameter D [mm]80.0
Weight [kg]5.92
Limit speed (grease) nmax4950
Limit speed nmin [min⁻¹]4950
Static load capacity C0 [N]188400.0
Note: Maximum rotary speed nmaxGuideline values for low load on bearing, good heat dissipation, and suitable grease lubricants with low consistency
Note: Bearing frictional torque with sealMeasured at 50 rpm
Rigidity against tilting Rkl [Nm/mrad]715
Bearing frictional torque with seal MRb [Nm]1.1
Rigidity of the bearing (axial) RFB [N/μm]600

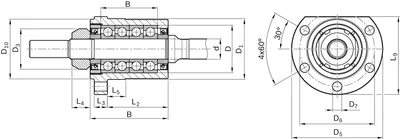

Dimension B [mm]110
Dimension D [mm]80
Dimension d [mm]35
Dimension d tolerance [mm]-0.012
Dimension D1 h7 [mm]100
Dimension D10 [mm]99
Dimension D3 [mm]54
Dimension D5 [mm]140
Dimension D6 [mm]120
Dimension D7 [mm]13
Dimension L2 [mm]82
Dimension L3 [mm]20
Dimension L4 [mm]22
Dimension L5 [mm]47
Dimension L9 [mm]124
