Bosch Rexroth R159B42501
The fixed bearing consists of: Angular-contact thrust ball bearing LGS, slotted nut NMB, suitable for screw ends type◡832, 842
Nominal size [mm]BASA 20 x 5,BASA 25 x 5/10
Tightening torque [Nm]38
Note: Tightening torqueMounting with hook wrench (DIN 1810)
Dynamic load capacity C [N]74200.0
Outer diameter D [mm]62.0
Weight [kg]3.2
About This Product
The fixed bearing consists of: Angular-contact thrust ball bearing LGS, slotted nut NMB, suitable for screw ends type◡832, 842
Bosch Rexroth R159B42501
- Genuine, certified Bosch Rexroth product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Nominal size [mm]BASA 20 x 5,BASA 25 x 5/10
Tightening torque [Nm]38
Note: Tightening torqueMounting with hook wrench (DIN 1810)
Dynamic load capacity C [N]74200.0
Outer diameter D [mm]62.0
Weight [kg]3.2
Limit speed (grease) nmax6900
Limit speed nmin [min⁻¹]6900
Static load capacity C0 [N]119200.0
Note: Maximum rotary speed nmaxGuideline values for low load on bearing, good heat dissipation, and suitable grease lubricants with low consistency
Note: Bearing frictional torque with sealMeasured at 50 rpm
Rigidity against tilting Rkl [Nm/mrad]160
Bearing frictional torque with seal MRb [Nm]1.1
Rigidity of the bearing (axial) RFB [N/μm]450

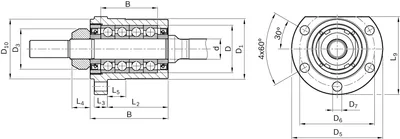

Dimension B [mm]89
Dimension D [mm]62
Dimension d [mm]25
Dimension d tolerance [mm]-0.01
Dimension D1 h7 [mm]80
Dimension D10 [mm]80
Dimension D3 [mm]44
Dimension D5 [mm]120
Dimension D6 [mm]100
Dimension D7 [mm]11
Dimension L2 [mm]68
Dimension L3 [mm]16
Dimension L4 [mm]20
Dimension L5 [mm]36
Dimension L9 [mm]104
Documents & CAD
For this product 2
CAD Files 2
