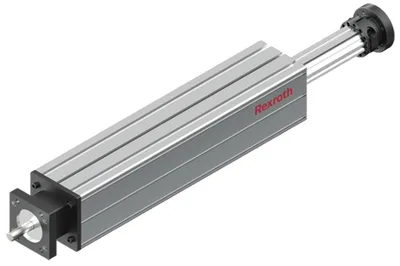

Bosch Rexroth R146230000
Feed modules with ball screw drive VKK, size 70
Nominal size [mm]VKK-070
Linear axes variantBall screw assembly
Maximum travel range smax [mm]452.0
Maximum acceleration rate amax [m/s²]27.0
Note: Maximum permissible speed vmaxFor all lengths
Max. length Lmax [mm]600.0
About This Product
Bosch Rexroth R146230000 (Feed modules with ball screw drive VKK, size 70) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Bosch Rexroth R146230000 — price, stock availability and technical specifications.
Bosch Rexroth R146230000
- Genuine, certified Bosch Rexroth product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Nominal size [mm]VKK-070
Linear axes variantBall screw assembly
Maximum travel range smax [mm]452.0
Note: Maximum permissible travel rangeMax. travel range (without bellows) at max. length
Maximum acceleration rate amax [m/s²]27.0
Maximum permissible linear speed vmax [m/s]1.23
Note: Maximum permissible speed vmaxFor all lengths
Max. length Lmax [mm]600.0
Dynamic load capacity, guideway Cgw [N]8120
Dynamic load capacity, fixed bearing Cfb [N]13400
Dynamic load capacity, ball screw assembly Cbs [N]12300
Dynamic torsional moment load capacity Mt [Nm]160.0
Dynamic longitudinal moment load capacity ML [Nm]280.0
Maximum permissible torsional moment Mt max [Nm]55
Maximum permissible longitudinal load moment ML max [Nm]110
Permissible ambient temperature with Rexroth servo motor (min. ... max.)0 °C ... 40 °C
Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.)Loss of performance at 40°C or higher
Permissible ambient temperature mechanics (min. … max.)-10 °C ... 60 °C
Note: Permissible ambient temperature mechanics (min. … max.)No dropping below dew point
Weight [kg]0
