Bosch Rexroth R109923088

Linear set (aluminum) 2 torque-resistant LB, tandem Ball guide grooves = 1 Shaft diameter d = 30 Shaft included 2000 = standard length as per table Without seal Version: Standard

Bosch RexrothMFR # R109923088SKU # YLST7R3M1VMYGW

Shaft diameter d [mm]30.0

Format of linear bushingsT - Tandem

SeriesTorque

TypeLinear set

Dynamic load capacity C [N]6000.0

Maximum acceleration rate amax [m/s²]150.0

Have questions?Chat on WhatsApp

About This Product

Linear set (aluminum) 2 torque-resistant LB, tandem Ball guide grooves = 1 Shaft diameter d = 30 Shaft included 2000 = standard length as per table Without seal Version: Standard

Bosch Rexroth R109923088

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]30.0

Format of linear bushingsT - Tandem

SeriesTorque

TypeLinear set

Dynamic load capacity C [N]6000.0

Note: Dynamic load capacity CLoad capacity when both linear bushings are under equal load. The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]3.0

Dynamic torsional moment load capacity Mt [Nm]37.0

Outer diameter D [mm]47.0

Mass m (kg/m) [kg/m]5.5

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Weight [kg]0.1

Static load capacity C0 [N]5580.0

Note: Static load capacity C0Load capacity when both linear bushings are under equal load. The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

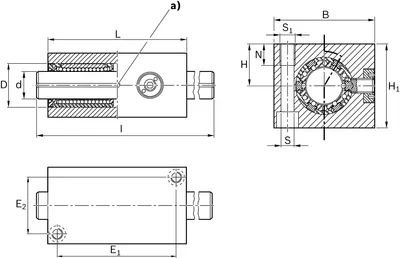

Dimension B [mm]84

Dimension D [mm]47

Dimension E1 [mm]130

Dimension E2 [mm]62

Dimension H [mm]35.0

Dimension H1 [mm]70

Dimension L [mm]152

Dimension N [mm]18

Dimension S [mm]10.5

Note: Standard length l of the shaft [mm]R.... ... 85: l = 900 mm, R.... ... 87: l = 1200 mm, R.... ... 88: l = 2000 mm

Standard length l of the shaft [mm]600
