Bosch Rexroth R108765020

Linear set (aluminum) Tandem, open With super LB A Shaft diameter d = 50 With two seals Version: Standard

Bosch RexrothMFR # R108765020SKU # YLSZLVLJZIRZUK

Shaft diameter d [mm]50.0

Format of linear bushingsTO - Tandem, open

SeriesSuper A (with self-alignment feature)

TypeLinear set

Dynamic load capacity C [N]20300.0

Maximum acceleration rate amax [m/s²]150.0

Have questions?Chat on WhatsApp

About This Product

Linear set (aluminum) Tandem, open With super LB A Shaft diameter d = 50 With two seals Version: Standard

Bosch Rexroth R108765020

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]50.0

Format of linear bushingsTO - Tandem, open

SeriesSuper A (with self-alignment feature)

TypeLinear set

Dynamic load capacity C [N]20300.0

Note: Dynamic load capacity CLoad capacity when both linear bushings are under equal load. The load capacities apply for the main direction of loading.

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]3.0

Note: Maximum permissible speed vmaxSpeeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure.

Dynamic longitudinal moment load capacity ML [Nm]33.0

Outer diameter D [mm]75.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Weight [kg]5.47

Static load capacity C0 [N]4724.0

Note: Static load capacity C0Load capacity when both linear bushings are under equal load. The load capacities apply for the main direction of loading.

Static longitudinal moment load capacity ML0 [Nm]415

Note: Shaft radial clearance h6Clamped (fastened).

Note: Friction force FRFrictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.

Breakaway force [N]10

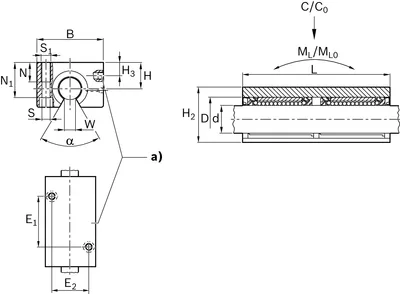

Dimension B [mm]130

Dimension D [mm]75

Dimension E1 [mm]125

Dimension E2 [mm]100

Dimension H [mm]50.0

Dimension H3 [mm]10

Dimension L [mm]224

Dimension N [mm]34

Dimension N1 [mm]77

Dimension S [mm]13.5

Dimension W [mm]22.5
