Bosch Rexroth R108762020

Linear set (aluminum) Tandem, open With super LB A Shaft diameter d = 20 With two seals Version: Standard

Bosch RexrothMFR # R108762020SKU # YLSWJYPUCIXLWLI

Shaft diameter d [mm]20.0

Format of linear bushingsTO - Tandem, open

SeriesSuper A (with self-alignment feature)

TypeLinear set

Dynamic load capacity C [N]4170.0

Maximum acceleration rate amax [m/s²]150.0

Have questions?Chat on WhatsApp

About This Product

Linear set (aluminum) Tandem, open With super LB A Shaft diameter d = 20 With two seals Version: Standard

Bosch Rexroth R108762020

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]20.0

Format of linear bushingsTO - Tandem, open

SeriesSuper A (with self-alignment feature)

TypeLinear set

Dynamic load capacity C [N]4170.0

Note: Dynamic load capacity CLoad capacity when both linear bushings are under equal load. The load capacities apply for the main direction of loading.

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]3.0

Note: Maximum permissible speed vmaxSpeeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure.

Dynamic longitudinal moment load capacity ML [Nm]30.0

Outer diameter D [mm]32.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Weight [kg]0.59

Static load capacity C0 [N]2360.0

Note: Static load capacity C0Load capacity when both linear bushings are under equal load. The load capacities apply for the main direction of loading.

Static longitudinal moment load capacity ML0 [Nm]47

Note: Shaft radial clearance h6Clamped (fastened).

Note: Friction force FRFrictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.

Breakaway force [N]3

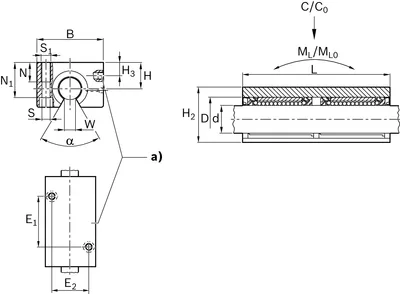

Dimension B [mm]60

Dimension D [mm]32

Dimension E1 [mm]55

Dimension E2 [mm]45

Dimension H [mm]25.0

Dimension H3 [mm]13

Dimension L [mm]104

Dimension N [mm]18

Dimension N1 [mm]35.5

Dimension S [mm]6.6

Dimension W [mm]9
