How can I get a price quote for Bosch Rexroth R108563020?

You can request a fast quote for Bosch Rexroth R108563020 from Yılsa Engineering. Reference part number YLS8CZYTAXQRZCF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Bosch Rexroth R108563020 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Bosch Rexroth R108563020 genuine and new?

Yes. This Bosch Rexroth product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Bosch Rexroth R108563020?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

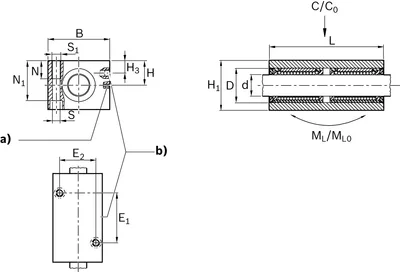

Photo may not represent actual item. Refer to name and product specs for all details.

Bosch Rexroth R108563020

Linear set (aluminum) Tandem, closed With super LB A Shaft diameter d = 30 With two seals Version: Standard

Bosch RexrothMFR # R108563020SKU # YLS8CZYTAXQRZCF

Shaft diameter d [mm]30.0

Format of linear bushingsT - Tandem

SeriesSuper A (with self-alignment feature)

TypeLinear set

Dynamic load capacity C [N]9520.0

Maximum acceleration rate amax [m/s²]12.0

Have questions?Chat on WhatsApp

About This Product

Linear set (aluminum) Tandem, closed With super LB A Shaft diameter d = 30 With two seals Version: Standard

Bosch Rexroth R108563020

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]30.0

Format of linear bushingsT - Tandem

SeriesSuper A (with self-alignment feature)

TypeLinear set

Dynamic load capacity C [N]9520.0

Note: Dynamic load capacity CLoad capacity when both linear bushings are under equal load. The load capacities apply for the main direction of loading. If the direction of loading is not the main direction of loading, the load capacities must be multiplied by the following factors: Ø d 10 to 16: f = 0.82, f0 = 0.86, Ø d 20 to 50: f = 0.82, f0 = 0.78

Maximum acceleration rate amax [m/s²]12.0

Maximum permissible linear speed vmax [m/s]3.0

Note: Maximum permissible speed vmaxSpeeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure.

Dynamic longitudinal moment load capacity ML [Nm]289.0

Outer diameter D [mm]47.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Weight [kg]2.08

Static load capacity C0 [N]7140.0

Note: Static load capacity C0Load capacity when both linear bushings are under equal load. The load capacities apply for the main direction of loading. If the direction of loading is not the main direction of loading, the load capacities must be multiplied by the following factors: Ø d 10 to 16: f = 0.82, f0 = 0.86, Ø d 20 to 50: f = 0.82, f0 = 0.78

Static longitudinal moment load capacity ML0 [Nm]206

Note: Friction force FRFrictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.

Breakaway force [N]6

Dimension B [mm]84

Dimension D [mm]47

Dimension E1 [mm]85

Dimension E2 [mm]62

Dimension H [mm]35.0

Dimension H1 [mm]70

Dimension H3 [mm]16

Dimension L [mm]152

Dimension N [mm]26

Dimension N1 [mm]56

Dimension S [mm]10.5
