How can I get a price quote for Bosch Rexroth R107828020?

You can request a fast quote for Bosch Rexroth R107828020 from Yılsa Engineering. Reference part number YLS9TAUGEZHB8DT. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Bosch Rexroth R107828020 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Bosch Rexroth R107828020 genuine and new?

Yes. This Bosch Rexroth product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Bosch Rexroth R107828020?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Bosch Rexroth R107828020

Linear set (steel) With radial LB, with side opening, adjustable Shaft diameter d = 80 With two seals Version: Standard

Bosch RexrothMFR # R107828020SKU # YLS9TAUGEZHB8DT

Shaft diameter d [mm]80.0

Format of linear bushingsSE - With side opening, adjustable

SeriesRadial, with side opening

TypeLinear set

Dynamic load capacity C [N]54800.0

Maximum acceleration rate amax [m/s²]50.0

Have questions?Chat on WhatsApp

About This Product

Linear set (steel) With radial LB, with side opening, adjustable Shaft diameter d = 80 With two seals Version: Standard

Bosch Rexroth R107828020

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]80.0

Format of linear bushingsSE - With side opening, adjustable

SeriesRadial, with side opening

TypeLinear set

Dynamic load capacity C [N]54800.0

Note: Dynamic load capacity CThe load capacities apply for the main direction of loading in the arrow direction FH1 or FH2.

Maximum acceleration rate amax [m/s²]50.0

Maximum permissible linear speed vmax [m/s]2.0

Radial clearanceComes with an h5 shaft (lower limit) and set to zero-clearance before delivery

Outer diameter D [mm]145.0

Permissible ambient temperature (min. ... max.)-20 °C ... +80 °C

Note: Permissible ambient temperature (min. ... max.)short-time 100 °C

Weight [kg]0.1

Static load capacity C0 [N]61500.0

Note: Static load capacity C0The load capacities apply for the main direction of loading in the arrow direction FH1 or FH2.

Breakaway force [N]60

Product informationPlease ask for delivery time!

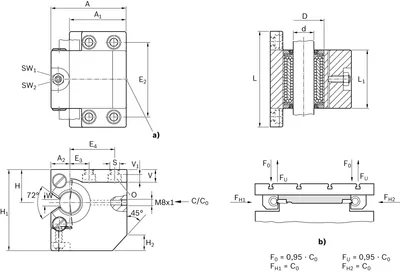

Dimension A js16 [mm]265

Dimension A1 js16 [mm]200

Dimension A2 js16 [mm]65

Dimension D [mm]145

Dimension E2 [mm]275

Dimension E3 [mm]75

Dimension E4 [mm]155

Dimension H [mm]110.0

Dimension H1 js16 [mm]265

Dimension H2 js16 [mm]70

Dimension L js16 [mm]345

Dimension L1 [mm]213

Dimension O thread diameter x lead [mm]M30x80

Dimension S [mm]33

Dimension SW1 [mm]36

Dimension SW2 [mm]12

Dimension V js16 [mm]45

Dimension V1 [mm]25.5

Dimension W [mm]39
