How can I get a price quote for Bosch Rexroth R107628020?

You can request a fast quote for Bosch Rexroth R107628020 from Yılsa Engineering. Reference part number YLSASAEZREDVII. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Bosch Rexroth R107628020 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Bosch Rexroth R107628020 genuine and new?

Yes. This Bosch Rexroth product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Bosch Rexroth R107628020?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Bosch Rexroth R107628020

Linear set (steel) With radial LB, open, adjustable Shaft diameter d = 80 With two seals Version: Standard

Bosch RexrothMFR # R107628020SKU # YLSASAEZREDVII

Shaft diameter d [mm]80.0

Format of linear bushingsOE - Open, adjustable

SeriesRadial, open

TypeLinear set

Dynamic load capacity C [N]54800.0

Maximum acceleration rate amax [m/s²]50.0

Have questions?Chat on WhatsApp

About This Product

Linear set (steel) With radial LB, open, adjustable Shaft diameter d = 80 With two seals Version: Standard

Bosch Rexroth R107628020

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]80.0

Format of linear bushingsOE - Open, adjustable

SeriesRadial, open

TypeLinear set

Dynamic load capacity C [N]54800.0

Note: Dynamic load capacity CThe stated load capacities apply for the main direction of loading ρ = 0°.

Maximum acceleration rate amax [m/s²]50.0

Maximum permissible linear speed vmax [m/s]2.0

Radial clearanceComes with an h5 shaft (lower limit) and set to zero-clearance before delivery

Outer diameter D [mm]145.0

Permissible ambient temperature (min. ... max.)-20 °C ... +80 °C

Note: Permissible ambient temperature (min. ... max.)short-time 100 °C

Weight [kg]75

Static load capacity C0 [N]61500.0

Note: Static load capacity C0The stated load capacities apply for the main direction of loading ρ = 0°.

Breakaway force [N]60

Product informationPlease ask for delivery time!

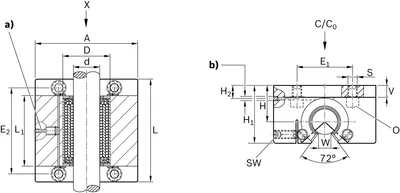

Dimension A js16 [mm]310

Dimension D [mm]145

Dimension E1 [mm]170

Dimension E2 [mm]260

Dimension H [mm]110.0

Dimension H1 js16 [mm]175

Dimension L js16 [mm]310

Dimension L1 [mm]213

Dimension O thread diameter x lead [mm]M24x80

Dimension S H13 [mm]26

Dimension SW [mm]12

Dimension V js16 [mm]35

Dimension W [mm]39

Documents & CAD

For this product 2

DatasheetLinear Bushings and ShaftsPDF·4.9 MB·Ge

DatasheetLinear bushingsPDF·23.7 MB·English

CAD Files 2

2D Drawing
