Bosch Rexroth R107625020

Linear set (steel) With radial LB, open, adjustable Shaft diameter d = 50 With two seals Version: Standard

Bosch RexrothMFR # R107625020SKU # YLSO83UVBRHTUEF

Shaft diameter d [mm]50.0

Format of linear bushingsOE - Open, adjustable

SeriesRadial, open

TypeLinear set

Dynamic load capacity C [N]20800.0

Maximum acceleration rate amax [m/s²]50.0

Have questions?Chat on WhatsApp

About This Product

Linear set (steel) With radial LB, open, adjustable Shaft diameter d = 50 With two seals Version: Standard

Bosch Rexroth R107625020

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]50.0

Format of linear bushingsOE - Open, adjustable

SeriesRadial, open

TypeLinear set

Dynamic load capacity C [N]20800.0

Note: Dynamic load capacity CThe stated load capacities apply for the main direction of loading ρ = 0°.

Maximum acceleration rate amax [m/s²]50.0

Maximum permissible linear speed vmax [m/s]2.0

Radial clearanceComes with an h5 shaft (lower limit) and set to zero-clearance before delivery

Outer diameter D [mm]90.0

Permissible ambient temperature (min. ... max.)-20 °C ... +80 °C

Note: Permissible ambient temperature (min. ... max.)short-time 100 °C

Weight [kg]20.04

Static load capacity C0 [N]24400.0

Note: Static load capacity C0The stated load capacities apply for the main direction of loading ρ = 0°.

Breakaway force [N]40

Product informationPlease ask for delivery time!

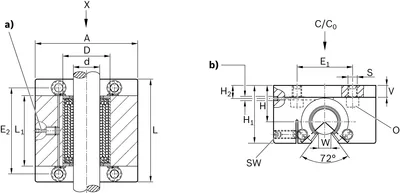

Dimension A js16 [mm]200

Dimension D [mm]90

Dimension E1 [mm]110

Dimension E2 [mm]170

Dimension H [mm]70.0

Dimension H1 js16 [mm]110

Dimension L js16 [mm]200

Dimension L1 [mm]138

Dimension O thread diameter x lead [mm]M16x50

Dimension S H13 [mm]17.5

Dimension SW [mm]8

Dimension V js16 [mm]23

Dimension W [mm]24.5
