Bosch Rexroth R107623020

Linear set (steel) With radial LB, open, adjustable Shaft diameter d = 30 With two seals Version: Standard

Bosch RexrothMFR # R107623020SKU # YLSNJTCTXBRN1HJ

Shaft diameter d [mm]30.0

Format of linear bushingsOE - Open, adjustable

SeriesRadial, open

TypeLinear set

Dynamic load capacity C [N]8500.0

Maximum acceleration rate amax [m/s²]50.0

Have questions?Chat on WhatsApp

About This Product

Linear set (steel) With radial LB, open, adjustable Shaft diameter d = 30 With two seals Version: Standard

Bosch Rexroth R107623020

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]30.0

Format of linear bushingsOE - Open, adjustable

SeriesRadial, open

TypeLinear set

Dynamic load capacity C [N]8500.0

Note: Dynamic load capacity CThe stated load capacities apply for the main direction of loading ρ = 0°.

Maximum acceleration rate amax [m/s²]50.0

Maximum permissible linear speed vmax [m/s]2.0

Radial clearanceComes with an h5 shaft (lower limit) and set to zero-clearance before delivery

Outer diameter D [mm]60.0

Permissible ambient temperature (min. ... max.)-20 °C ... +80 °C

Note: Permissible ambient temperature (min. ... max.)short-time 100 °C

Weight [kg]6.77

Static load capacity C0 [N]9520.0

Note: Static load capacity C0The stated load capacities apply for the main direction of loading ρ = 0°.

Breakaway force [N]24

Product informationPlease ask for delivery time!

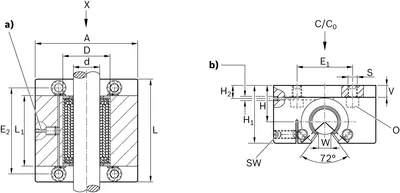

Dimension A js16 [mm]140

Dimension D [mm]60

Dimension E1 [mm]75

Dimension E2 [mm]108

Dimension H [mm]48.0

Dimension H1 js16 [mm]75

Dimension L js16 [mm]130

Dimension L1 [mm]84

Dimension O thread diameter x lead [mm]M10x30

Dimension S H13 [mm]11

Dimension SW [mm]5

Dimension V js16 [mm]16

Dimension W [mm]14
