Bosch Rexroth R107263020

Linear set (aluminum) Side opening, adjustable With super LB A Shaft diameter d = 30 With two seals Version: Standard

Bosch RexrothMFR # R107263020SKU # YLSDEJL7V3F0OEX

Shaft diameter d [mm]30.0

Format of linear bushingsSE - With side opening, adjustable

SeriesSuper A (with self-alignment feature)

TypeLinear set

Dynamic load capacity C [N]5020.0

Maximum acceleration rate amax [m/s²]150.0

Have questions?Chat on WhatsApp

About This Product

Linear set (aluminum) Side opening, adjustable With super LB A Shaft diameter d = 30 With two seals Version: Standard

Bosch Rexroth R107263020

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]30.0

Format of linear bushingsSE - With side opening, adjustable

SeriesSuper A (with self-alignment feature)

TypeLinear set

Dynamic load capacity C [N]5020.0

Note: Dynamic load capacity CThe load capacities apply for the main direction of loading.

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]3.0

Note: Maximum permissible speed vmaxSpeeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure.

Radial clearanceClamped to h5 shaft (lower limit) and set to zero-clearance before delivery

Outer diameter D [mm]47.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Weight [kg]1.17

Static load capacity C0 [N]2880.0

Note: Static load capacity C0The load capacities apply for the main direction of loading.

Note: Friction force FRFrictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.

Breakaway force [N]6

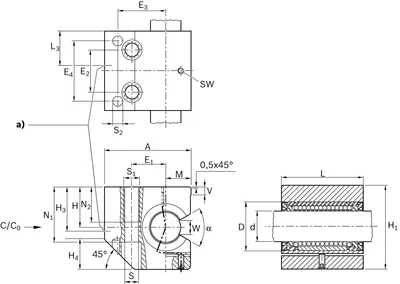

Dimension A [mm]86

Dimension D [mm]47

Dimension E1 [mm]34

Dimension E2 [mm]42

Dimension E3 [mm]48

Dimension E4 [mm]60

Dimension H [mm]40.0

Dimension H1 [mm]82

Dimension H3 [mm]44

Dimension H4 [mm]30

Dimension L [mm]79
