How can I get a price quote for Bosch Rexroth R106863040?

You can request a fast quote for Bosch Rexroth R106863040 from Yılsa Engineering. Reference part number YLSGL37JQMJC7VI. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Bosch Rexroth R106863040 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Bosch Rexroth R106863040 genuine and new?

Yes. This Bosch Rexroth product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Bosch Rexroth R106863040?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Bosch Rexroth R106863040

Linear set (steel) Open, adjustable With super LB A Shaft diameter d = 30 With two seals Version: Standard

Bosch RexrothMFR # R106863040SKU # YLSGL37JQMJC7VI

Shaft diameter d [mm]30.0

Format of linear bushingsOE - Open, adjustable

SeriesSuper A (with self-alignment feature)

TypeLinear set

Dynamic load capacity C [N]5020.0

Maximum acceleration rate amax [m/s²]150.0

Have questions?Chat on WhatsApp

About This Product

Linear set (steel) Open, adjustable With super LB A Shaft diameter d = 30 With two seals Version: Standard

Bosch Rexroth R106863040

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]30.0

Format of linear bushingsOE - Open, adjustable

SeriesSuper A (with self-alignment feature)

TypeLinear set

Dynamic load capacity C [N]5020.0

Note: Dynamic load capacity CThe load capacities apply for the main direction of loading.

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]3.0

Note: Maximum permissible speed vmaxSpeeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure.

Radial clearanceClamped to h5 shaft (lower limit) and set to zero-clearance before delivery

Outer diameter D [mm]47.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Weight [kg]1.08

Static load capacity C0 [N]2880.0

Note: Static load capacity C0The load capacities apply for the main direction of loading.

Note: Friction force FRFrictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.

Breakaway force [N]6

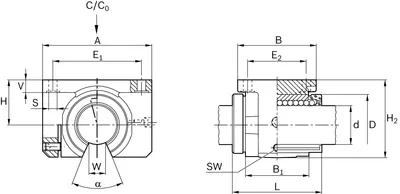

Dimension A [mm]84

Dimension B [mm]60

Dimension B1 [mm]48

Dimension D [mm]47

Dimension E1 [mm]68

Dimension E2 [mm]45

Dimension H [mm]35.0

Dimension L [mm]68

Dimension S [mm]6.6

Dimension SW [mm]3

Dimension V [mm]10
