Bosch Rexroth R106722000

Linear set (steel) Open With standard LB (metal) Shaft diameter d = 20 With two seals Version: Standard

Bosch RexrothMFR # R106722000SKU # YLSWJPJG25RL6H0

Shaft diameter d [mm]20.0

Format of linear bushingsO - Open

SeriesStandard (metal)

TypeLinear set

Dynamic load capacity C [N]1280.0

Maximum acceleration rate amax [m/s²]100.0

Have questions?Chat on WhatsApp

About This Product

Linear set (steel) Open With standard LB (metal) Shaft diameter d = 20 With two seals Version: Standard

Bosch Rexroth R106722000

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]20.0

Format of linear bushingsO - Open

SeriesStandard (metal)

TypeLinear set

Dynamic load capacity C [N]1280.0

Note: Dynamic load capacity CThe load capacities apply for the main direction of loading.

Maximum acceleration rate amax [m/s²]100.0

Maximum permissible linear speed vmax [m/s]2.5

Outer diameter D [mm]32.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Note: Permissible ambient temperature (min. ... max.)for standard linear bushings without wiper seals

Weight [kg]0.4

Static load capacity C0 [N]970.0

Note: Static load capacity C0The load capacities apply for the main direction of loading.

Note: Friction force FRFrictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.

Breakaway force [N]16

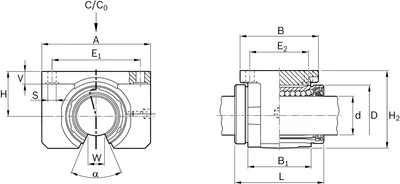

Dimension A [mm]60

Dimension B [mm]42

Dimension B1 [mm]28

Dimension D [mm]32

Dimension E1 [mm]45

Dimension E2 [mm]32

Dimension H [mm]25.0

Dimension L [mm]45

Dimension S [mm]4.5

Dimension V [mm]8

Dimension W [mm]10
