Bosch Rexroth R106022520

Linear set (plastic) Plastic, with segmental LB Shaft diameter d = 25 With two seals Version: Rust-resistant

Bosch RexrothMFR # R106022520SKU # YLSP5NWYABSVNXB

Shaft diameter d [mm]25.0

VersionCorrosion-resistant

Format of linear bushings– Closed

TypeLinear set

Dynamic load capacity C [N]820.0

Maximum acceleration rate amax [m/s²]150.0

Have questions?Chat on WhatsApp

About This Product

Linear set (plastic) Plastic, with segmental LB Shaft diameter d = 25 With two seals Version: Rust-resistant

Bosch Rexroth R106022520

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]25.0

VersionCorrosion-resistant

Format of linear bushings– Closed

TypeLinear set

Dynamic load capacity C [N]820.0

Note: Dynamic load capacity CThe load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]3.0

Radial clearanceClamped to h5 shaft (lower limit) and set to zero-clearance before delivery

Permissible ambient temperature (min. ... max.)-10 °C ... +65 °C

Weight [kg]0.15

Static load capacity C0 [N]1090.0

Note: Static load capacity C0The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.

Note: Breakaway forceFrictional drags generated by linear bushings with seals on both ends when not under radial load. This depends on speed and lubrication.

Note: Friction force FRFrictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.

Breakaway force [N]7

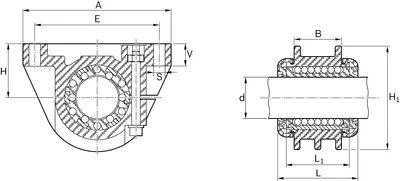

Dimension A [mm]87

Dimension B [mm]30

Dimension E [mm]72

Dimension H [mm]30.0

Dimension H1 [mm]60

Dimension L [mm]46

Dimension L1 [mm]37

Dimension S [mm]6.6

Dimension V [mm]11.5
