How can I get a price quote for Bosch Rexroth R106022020?

You can request a fast quote for Bosch Rexroth R106022020 from Yılsa Engineering. Reference part number YLSGWYKQCCHK7OX. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Bosch Rexroth R106022020 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Bosch Rexroth R106022020 genuine and new?

Yes. This Bosch Rexroth product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Bosch Rexroth R106022020?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Bosch Rexroth R106022020

Linear set (plastic) Plastic, with segmental LB Shaft diameter d = 20 With two seals Version: Rust-resistant

Bosch RexrothMFR # R106022020SKU # YLSGWYKQCCHK7OX

Shaft diameter d [mm]20.0

VersionCorrosion-resistant

Format of linear bushings– Closed

TypeLinear set

Dynamic load capacity C [N]510.0

Maximum acceleration rate amax [m/s²]150.0

Have questions?Chat on WhatsApp

About This Product

Linear set (plastic) Plastic, with segmental LB Shaft diameter d = 20 With two seals Version: Rust-resistant

Bosch Rexroth R106022020

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]20.0

VersionCorrosion-resistant

Format of linear bushings– Closed

TypeLinear set

Dynamic load capacity C [N]510.0

Note: Dynamic load capacity CThe load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]3.0

Radial clearanceClamped to h5 shaft (lower limit) and set to zero-clearance before delivery

Permissible ambient temperature (min. ... max.)-10 °C ... +65 °C

Weight [kg]0.08

Static load capacity C0 [N]690.0

Note: Static load capacity C0The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.

Note: Breakaway forceFrictional drags generated by linear bushings with seals on both ends when not under radial load. This depends on speed and lubrication.

Note: Friction force FRFrictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.

Breakaway force [N]5

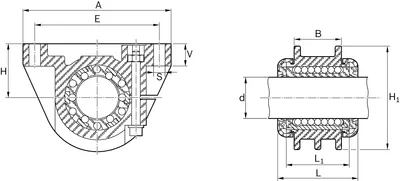

Dimension A [mm]69

Dimension B [mm]23

Dimension E [mm]58

Dimension H [mm]25.0

Dimension H1 [mm]50

Dimension L [mm]38

Dimension L1 [mm]30

Dimension S [mm]5.5

Dimension V [mm]10.5
