Bosch Rexroth R105603000

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Bosch Rexroth R105603000

Shaft support block (lamellar graphite cast iron)<br>Shaft diameter d = 30<br>Flange

Bosch RexrothMFR # R105603000SKU # YLSYY6TERUO3VW

Accessories for linear bushingsShaft support blocks

Shaft diameter d [mm]30.0

TypeShaft support block

Housing materialCast iron = G

Weight [kg]0.73

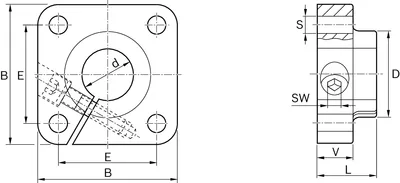

Dimension B [mm]76

Share

Have questions?Chat on WhatsApp

About This Product

Shaft support block (lamellar graphite cast iron)<br>Shaft diameter d = 30<br>Flange

Bosch Rexroth R105603000

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Accessories for linear bushingsShaft support blocks

Shaft diameter d [mm]30.0

TypeShaft support block

Housing materialCast iron = G

Weight [kg]0.73

Dimension B [mm]76

Dimension D [mm]49.5

Dimension d H7 [mm]30

Dimension E [mm]54

Dimension L [mm]30

Dimension S H13 [mm]9

Dimension SW [mm]6

Dimension V [mm]19

Note: Dimension LTolerance ISO 8062-3 - DCTG 9.

Documents & CAD

For this product 2

DatasheetLinear Bushings and ShaftsPDF·4.9 MB·Ge

DatasheetLinear bushingsPDF·23.7 MB·English

CAD Files 4

3D Model

2D Drawing
