Bosch Rexroth R103464020

Linear set (aluminum) Tandem, open, adjustable With super LB A Shaft diameter d = 40 With two seals Version: Standard

Bosch RexrothMFR # R103464020SKU # YLS3MVDYRWLTEOQ

Shaft diameter d [mm]40.0

Format of linear bushingsTOE - Tandem, open, adjustable

SeriesSuper A (with self-alignment feature)

TypeLinear set

Dynamic load capacity C [N]14000.0

Maximum acceleration rate amax [m/s²]150.0

Have questions?Chat on WhatsApp

About This Product

Linear set (aluminum) Tandem, open, adjustable With super LB A Shaft diameter d = 40 With two seals Version: Standard

Bosch Rexroth R103464020

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]40.0

Format of linear bushingsTOE - Tandem, open, adjustable

SeriesSuper A (with self-alignment feature)

TypeLinear set

Dynamic load capacity C [N]14000.0

Note: Dynamic load capacity CLoad capacity when both linear bushings are under equal load. The load capacities apply for the main direction of loading.

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]3.0

Note: Maximum permissible speed vmaxSpeeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure.

Dynamic longitudinal moment load capacity ML [Nm]328.0

Radial clearanceClamped to h5 shaft (lower limit) and set to zero-clearance before delivery

Outer diameter D [mm]62.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Weight [kg]2.97

Static load capacity C0 [N]8960.0

Note: Static load capacity C0Load capacity when both linear bushings are under equal load. The load capacities apply for the main direction of loading.

Static longitudinal moment load capacity ML0 [Nm]212

Note: Friction force FRFrictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.

Breakaway force [N]8

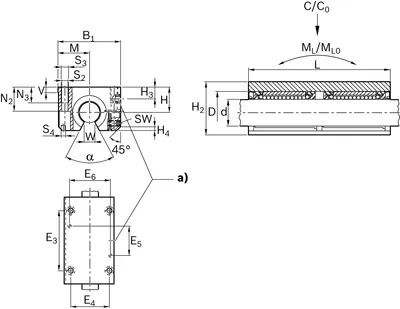

Dimension B1 [mm]108

Dimension D [mm]62

Dimension E3 [mm]124

Dimension E3 tolerance [mm]±0.15

Dimension E4 [mm]86

Dimension E5 [mm]60

Dimension E6 [mm]90

Dimension H [mm]45.0

Dimension H3 [mm]20

Dimension H4 [mm]6

Dimension L [mm]176
