Bosch Rexroth R103461620

Linear set (aluminum) Tandem, open, adjustable With super LB A Shaft diameter d = 16 With two seals Version: Standard

Bosch RexrothMFR # R103461620SKU # YLSUV6D28S22QST

Shaft diameter d [mm]16.0

Format of linear bushingsTOE - Tandem, open, adjustable

SeriesSuper A (with self-alignment feature)

TypeLinear set

Dynamic load capacity C [N]2430.0

Maximum acceleration rate amax [m/s²]150.0

Have questions?Chat on WhatsApp

About This Product

Linear set (aluminum) Tandem, open, adjustable With super LB A Shaft diameter d = 16 With two seals Version: Standard

Bosch Rexroth R103461620

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]16.0

Format of linear bushingsTOE - Tandem, open, adjustable

SeriesSuper A (with self-alignment feature)

TypeLinear set

Dynamic load capacity C [N]2430.0

Note: Dynamic load capacity CLoad capacity when both linear bushings are under equal load. The load capacities apply for the main direction of loading.

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]3.0

Note: Maximum permissible speed vmaxSpeeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure.

Dynamic longitudinal moment load capacity ML [Nm]18.0

Radial clearanceClamped to h5 shaft (lower limit) and set to zero-clearance before delivery

Outer diameter D [mm]26.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Weight [kg]0.33

Static load capacity C0 [N]1660.0

Note: Static load capacity C0Load capacity when both linear bushings are under equal load. The load capacities apply for the main direction of loading.

Static longitudinal moment load capacity ML0 [Nm]13

Note: Friction force FRFrictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.

Breakaway force [N]2

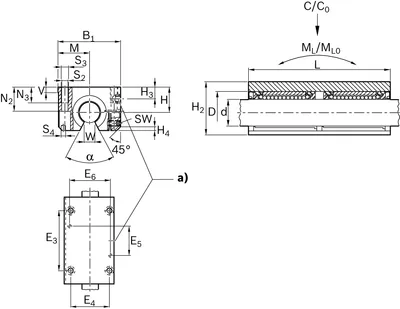

Dimension B1 [mm]53

Dimension D [mm]26

Dimension E3 [mm]64

Dimension E3 tolerance [mm]±0.15

Dimension E4 [mm]40

Dimension E5 [mm]28

Dimension E6 [mm]42

Dimension H [mm]22.0

Dimension H3 [mm]12

Dimension H4 [mm]2.5

Dimension L [mm]84
