Bosch Rexroth R103261220

Linear set (aluminum) Tandem, adjustable With super LB A Shaft diameter d = 12 With two seals Version: Standard

Bosch RexrothMFR # R103261220SKU # YLSFMWDYTBL5NB

Shaft diameter d [mm]12.0

Format of linear bushingsTE - Tandem, adjustable

SeriesSuper A (with self-alignment feature)

TypeLinear set

Dynamic load capacity C [N]1660.0

Maximum acceleration rate amax [m/s²]150.0

Have questions?Chat on WhatsApp

About This Product

Linear set (aluminum) Tandem, adjustable With super LB A Shaft diameter d = 12 With two seals Version: Standard

Bosch Rexroth R103261220

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]12.0

Format of linear bushingsTE - Tandem, adjustable

SeriesSuper A (with self-alignment feature)

TypeLinear set

Dynamic load capacity C [N]1660.0

Note: Dynamic load capacity CLoad capacity when both linear bushings are under equal load. The load capacities apply for the main direction of loading. If the direction of loading is not the main direction of loading, the load capacities must be multiplied by the following factors: Ø d 10 to 16: f = 0.82, f0 = 0.86, Ø d 20 to 50: f = 0.82, f0 = 0.78

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]3.0

Note: Maximum permissible speed vmaxSpeeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure.

Dynamic longitudinal moment load capacity ML [Nm]26.0

Radial clearanceClamped to h5 shaft (lower limit) and set to zero-clearance before delivery

Outer diameter D [mm]22.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Weight [kg]0.25

Static load capacity C0 [N]980.0

Note: Static load capacity C0Load capacity when both linear bushings are under equal load. The load capacities apply for the main direction of loading. If the direction of loading is not the main direction of loading, the load capacities must be multiplied by the following factors: Ø d 10 to 16: f = 0.82, f0 = 0.86, Ø d 20 to 50: f = 0.82, f0 = 0.78

Static longitudinal moment load capacity ML0 [Nm]16

Note: Friction force FRFrictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.

Breakaway force [N]1.5

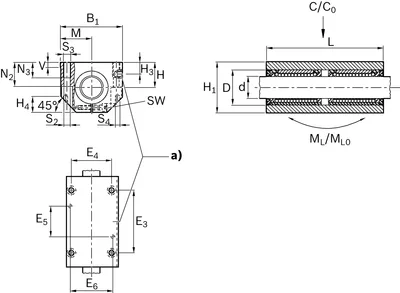

Dimension B1 [mm]43

Dimension D [mm]22

Dimension E3 [mm]56

Dimension E3 tolerance [mm]±0.15

Dimension E4 [mm]32

Dimension E5 [mm]24

Dimension E6 [mm]34

Dimension H [mm]18.0

Dimension H1 [mm]35

Dimension H3 [mm]10

Dimension H4 [mm]10
