How can I get a price quote for Bosch Rexroth R102925244?

You can request a fast quote for Bosch Rexroth R102925244 from Yılsa Engineering. Reference part number YLS49MNG1B9Y9PK. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Bosch Rexroth R102925244 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Bosch Rexroth R102925244 genuine and new?

Yes. This Bosch Rexroth product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Bosch Rexroth R102925244?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Bosch Rexroth R102925244

eLINE linear set (aluminum) With compact LB, tandem, closed Shaft diameter d = 16 With two seals Version: Standard Greased

Bosch RexrothMFR # R102925244SKU # YLS49MNG1B9Y9PK

Shaft diameter d [mm]16.0

VersionNormal

Format of linear bushings– Closed

SeriesCompact (eLINE)

TypeLinear set

Dynamic load capacity C [N]1700.0

Have questions?Chat on WhatsApp

About This Product

eLINE linear set (aluminum) With compact LB, tandem, closed Shaft diameter d = 16 With two seals Version: Standard Greased

Bosch Rexroth R102925244

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]16.0

VersionNormal

Format of linear bushings– Closed

SeriesCompact (eLINE)

TypeLinear set

Dynamic load capacity C [N]1700.0

Note: Dynamic load capacity CThe load capacities apply for the main direction of loading. If the load direction is not the main direction of loading, the load capacities must be multiplied by the following factors: ↩Ø d 12 and 16: f = 0.90, f0 = 0.86, ↩Ø d 20 to 50: f = 0.79, f0 = 0.68

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]5.0

Outer diameter D [mm]24.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Weight [kg]0.24

Static load capacity C0 [N]1140.0

Note: Static load capacity C0The load capacities apply for the main direction of loading. If the load direction is not the main direction of loading, the load capacities must be multiplied by the following factors: ↩Ø d 12 and 16: f = 0.90, f0 = 0.86, ↩Ø d 20 to 50: f = 0.79, f0 = 0.68

Static longitudinal moment load capacity ML0 [Nm]18

Note: Friction force FRFrictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.

Breakaway force [N]2

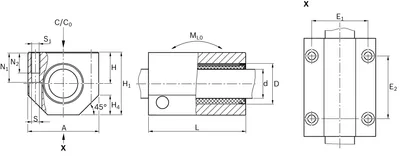

Dimension A [mm]45

Dimension D [mm]24

Dimension E1 [mm]34

Dimension E2 [mm]40

Dimension H [mm]19.0

Dimension H1 [mm]38

Dimension H4 [mm]13

Dimension L [mm]65

Dimension N1 [mm]18

Dimension N2 [mm]11

Dimension S [mm]4.3
