Bosch Rexroth R102924044

Linear set (aluminum) With compact LB, tandem, closed Shaft diameter d = 40 With two seals Version: Standard Greased

Bosch RexrothMFR # R102924044SKU # YLSLEATEQFMY4HQ

Shaft diameter d [mm]40.0

VersionNormal

Format of linear bushings– Closed

SeriesCompact

TypeLinear set

Dynamic load capacity C [N]10360.0

Have questions?Chat on WhatsApp

About This Product

Linear set (aluminum) With compact LB, tandem, closed Shaft diameter d = 40 With two seals Version: Standard Greased

Bosch Rexroth R102924044

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]40.0

VersionNormal

Format of linear bushings– Closed

SeriesCompact

TypeLinear set

Dynamic load capacity C [N]10360.0

Note: Dynamic load capacity CThe load capacities apply for the main direction of loading. If the load direction is not the main direction of loading, the load capacities must be multiplied by the following factors: ↩Ø d 12 and 16: f = 0.90, f0 = 0.86, ↩Ø d 20 to 50: f = 0.79, f0 = 0.68

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]5.0

Outer diameter D [mm]52.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Weight [kg]1.59

Static load capacity C0 [N]9300.0

Note: Static load capacity C0The load capacities apply for the main direction of loading. If the load direction is not the main direction of loading, the load capacities must be multiplied by the following factors: ↩Ø d 12 and 16: f = 0.90, f0 = 0.86, ↩Ø d 20 to 50: f = 0.79, f0 = 0.68

Static longitudinal moment load capacity ML0 [Nm]204

Note: Friction force FRFrictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.

Breakaway force [N]8

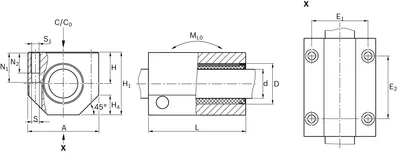

Dimension A [mm]87

Dimension D [mm]52

Dimension E1 [mm]69

Dimension E2 [mm]85

Dimension H [mm]39.0

Dimension H1 [mm]76

Dimension H4 [mm]24

Dimension L [mm]125

Dimension N1 [mm]38

Dimension N2 [mm]22

Dimension S [mm]8.4
