Bosch Rexroth R074251200

Flange linear bushing Standard (metal) Central flanged Shaft diameter d = 12 With two seals Version: Standard

Bosch RexrothMFR # R074251200SKU # YLSSMPQFZPHRM78

Shaft diameter d [mm]12.0

VersionNormal

Format of linear bushingsM - Central flanged

SeriesStandard (metal)

TypeLinear bushing

Seal2 integrated wiper seals

Have questions?Chat on WhatsApp

About This Product

Flange linear bushing Standard (metal) Central flanged Shaft diameter d = 12 With two seals Version: Standard

Bosch Rexroth R074251200

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]12.0

VersionNormal

Format of linear bushingsM - Central flanged

SeriesStandard (metal)

TypeLinear bushing

Seal2 integrated wiper seals

LubricationNot lubricated

Maximum dynamic load capacity Cmax [N]750.0

Maximum acceleration rate amax [m/s²]100.0

Maximum permissible linear speed vmax [m/s]2.5

Length of linear bushing [mm]61.0

Outer diameter D [mm]22.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Note: Permissible ambient temperature (min. ... max.)Only unsealed linear bushings with steel ball retainers may be used at higher temperatures. Make allowance for reductions in load capacity.

Weight [kg]0.12

Static longitudinal moment load capacity ML0 [Nm]11

Note: Maximum dynamic load capacity CmaxThe dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.

Note: Minimum dynamic load capacity CminThe dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.

Note: Shaft radial clearance h6Determined from working bore diameter and shaft tolerance statistics. Recommended housing bore tolerance: H6 or H7

Note: Friction force FRFrictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.

Breakaway force [N]6

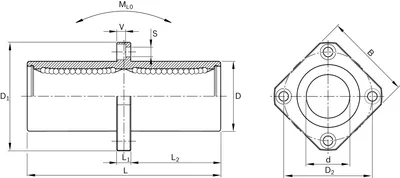

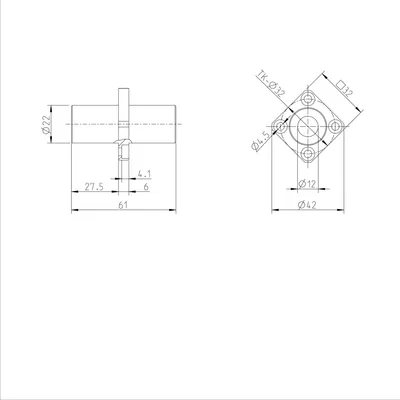

Dimension B [mm]32

Dimension D [mm]22

Dimension D1 [mm]42

Dimension D2 [mm]32

Dimension L [mm]61

Dimension L tolerance [mm]±0.3

Dimension L1 [mm]6

Dimension L2 [mm]27.5

Dimension S [mm]4.5

Dimension V [mm]4.1
