How can I get a price quote for Bosch Rexroth R074150800?

You can request a fast quote for Bosch Rexroth R074150800 from Yılsa Engineering. Reference part number YLSB3P4QYV5EUNM. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Bosch Rexroth R074150800 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Bosch Rexroth R074150800 genuine and new?

Yes. This Bosch Rexroth product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Bosch Rexroth R074150800?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Bosch Rexroth R074150800

Flange linear bushing Standard (metal) Flanged, tandem Shaft diameter d = 8 With two seals Version: Standard

Bosch RexrothMFR # R074150800SKU # YLSB3P4QYV5EUNM

Shaft diameter d [mm]8.0

VersionNormal

Format of linear bushingsFT - Flanged, tandem

SeriesStandard (metal)

TypeLinear bushing

Seal2 integrated wiper seals

Have questions?Chat on WhatsApp

About This Product

Flange linear bushing Standard (metal) Flanged, tandem Shaft diameter d = 8 With two seals Version: Standard

Bosch Rexroth R074150800

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]8.0

VersionNormal

Format of linear bushingsFT - Flanged, tandem

SeriesStandard (metal)

TypeLinear bushing

Seal2 integrated wiper seals

LubricationNot lubricated

Maximum dynamic load capacity Cmax [N]390.0

Maximum acceleration rate amax [m/s²]100.0

Maximum permissible linear speed vmax [m/s]2.5

Length of linear bushing [mm]46.0

Outer diameter D [mm]16.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Note: Permissible ambient temperature (min. ... max.)Only unsealed linear bushings with steel ball retainers may be used at higher temperatures. Make allowance for reductions in load capacity.

Weight [kg]0.06

Static longitudinal moment load capacity ML0 [Nm]4.5

Note: Maximum dynamic load capacity CmaxThe dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.

Note: Minimum dynamic load capacity CminThe dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.

Note: Shaft radial clearance h6Determined from working bore diameter and shaft tolerance statistics. Recommended housing bore tolerance: H6 or H7

Note: Friction force FRFrictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.

Breakaway force [N]1

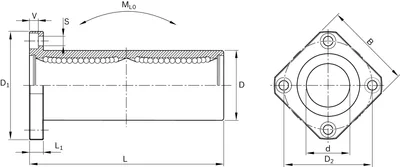

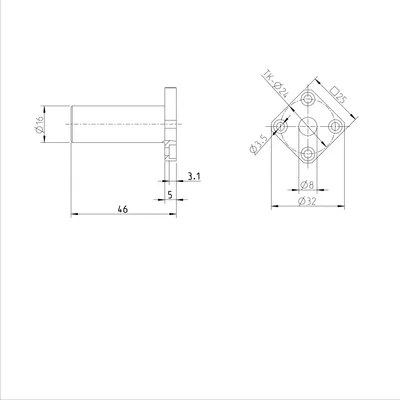

Dimension B [mm]25

Dimension D [mm]16

Dimension D1 [mm]32

Dimension D2 [mm]24

Dimension L [mm]46

Dimension L tolerance [mm]±0.3

Dimension L1 [mm]5

Dimension S [mm]3.5

Dimension V [mm]3.1
