Bosch Rexroth R073212040

Super linear bushing Super H Closed Shaft diameter d = 20 With one seal

Bosch RexrothMFR # R073212040SKU # YLS3COJNLQDJY1

Shaft diameter d [mm]20.0

VersionNormal

Format of linear bushings– Closed

SeriesSuper H

TypeLinear bushing

Seal1 integrated wiper seal

Have questions?Chat on WhatsApp

About This Product

Super linear bushing Super H Closed Shaft diameter d = 20 With one seal

Bosch Rexroth R073212040

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]20.0

VersionNormal

Format of linear bushings– Closed

SeriesSuper H

TypeLinear bushing

Seal1 integrated wiper seal

LubricationNot lubricated

Dynamic load capacity C [N]2520.0

Note: Dynamic load capacity CThe load capacities apply for the main direction of loading.

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]5.0

Length of linear bushing [mm]45.0

Outer diameter D [mm]32.0

Permissible ambient temperature (min. ... max.)-20 °C ... +80 °C

Friction coefficient μ0.001 ... 0.004

Note: Friction coefficient μFriction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load.

Weight [kg]0.08

Static load capacity C0 [N]1880.0

Note: Static load capacity C0The load capacities apply for the main direction of loading.

Note: Breakaway forceOne wiper seal: Multiply value with factor 0.5

Note: Friction force FROne wiper seal: Multiply value with factor 0.5

Breakaway force [N]5

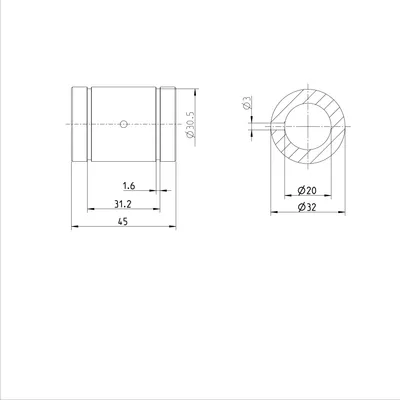

Dimension C h13 [mm]45

Dimension C1 H13 [mm]31.2

Dimension C2 [mm]1.6

Dimension D [mm]32

Dimension D1 [mm]30.5

Dimension S1 [mm]3
