How can I get a price quote for Bosch Rexroth R073115040?

You can request a fast quote for Bosch Rexroth R073115040 from Yılsa Engineering. Reference part number YLSCDEGTAAEN03R. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Bosch Rexroth R073115040 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Bosch Rexroth R073115040 genuine and new?

Yes. This Bosch Rexroth product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Bosch Rexroth R073115040?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Bosch Rexroth R073115040

Super linear bushing Super SH Open Shaft diameter d = 50 With one seal

Bosch RexrothMFR # R073115040SKU # YLSCDEGTAAEN03R

Shaft diameter d [mm]50.0

VersionNormal

Format of linear bushingsO - Open

SeriesSuper SH

TypeLinear bushing

Seal1 integrated wiper seal

Have questions?Chat on WhatsApp

About This Product

Super linear bushing Super SH Open Shaft diameter d = 50 With one seal

Bosch Rexroth R073115040

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]50.0

VersionNormal

Format of linear bushingsO - Open

SeriesSuper SH

TypeLinear bushing

Seal1 integrated wiper seal

LubricationNot lubricated

Dynamic load capacity C [N]22300.0

Note: Dynamic load capacity CThe load capacities apply for the main direction of loading.

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]5.0

Length of linear bushing [mm]100.0

Outer diameter D [mm]75.0

Permissible ambient temperature (min. ... max.)-20 °C ... +80 °C

Friction coefficient μ0.001 ... 0.004

Note: Friction coefficient μFriction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load.

Weight [kg]0.87

Static load capacity C0 [N]16800.0

Note: Static load capacity C0The load capacities apply for the main direction of loading.

Note: Breakaway forceOne wiper seal: Multiply value with factor 0.5

Note: Friction force FROne wiper seal: Multiply value with factor 0.5

Breakaway force [N]15

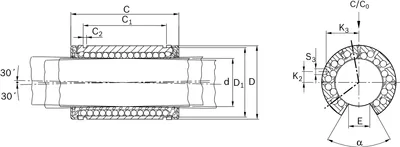

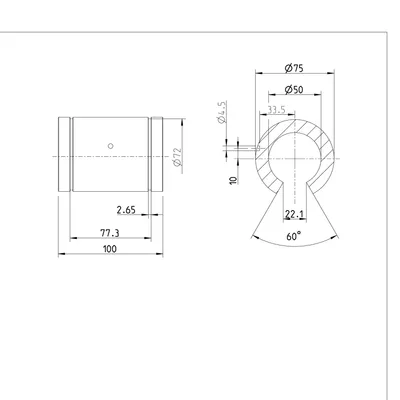

Dimension C h13 [mm]100

Dimension C1 H13 [mm]77.3

Dimension C2 [mm]2.65

Dimension D [mm]75

Dimension D1 [mm]72

Dimension E [mm]22.1
