Bosch Rexroth R072723000

Torque-resistant linear bushing (with rotation ball bearing) Ball guide grooves = 4 Shaft diameter d = 30 With two seals Without shaft

Bosch RexrothMFR # R072723000SKU # YLSOEIWLF41YT0

Shaft diameter d [mm]30.0

VersionNormal

Format of linear bushingsLR - With rotation ball bearing

SeriesTorque

TypeLinear bushing

Seal2 integrated wiper seals

Have questions?Chat on WhatsApp

About This Product

Torque-resistant linear bushing (with rotation ball bearing) Ball guide grooves = 4 Shaft diameter d = 30 With two seals Without shaft

Bosch Rexroth R072723000

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]30.0

VersionNormal

Format of linear bushingsLR - With rotation ball bearing

SeriesTorque

TypeLinear bushing

Seal2 integrated wiper seals

LubricationNot lubricated

Raceway grooves4

Tightening torque [Nm]12.7

Note: Tightening torqueTightening torque at friction factor 0.125

Dynamic load capacity C [N]14800.0

Note: Dynamic load capacity CThe load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]3.0

Dynamic torsional moment load capacity Mt [Nm]229.0

Length of linear bushing [mm]80.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Weight [kg]1.34

Limit speed (grease) nmax800

Note: Diameter dActual shaft diameter varies

Static load capacity C0 [N]23200.0

Note: Static load capacity C0The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.

Static torsional moment load capacity Mt0 [Nm]412

Shaft diameter, detailed [mm]28

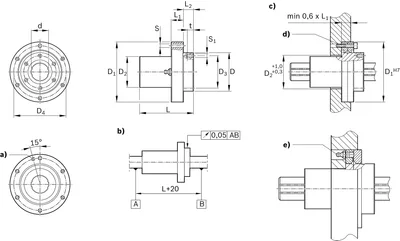

Dimension D [mm]47

Dimension D1 [mm]100

Dimension D1 h7 [mm]100

Dimension D2 [mm]47

Dimension D3 [mm]52

Dimension D4 [mm]86

Dimension L [mm]80

Dimension L tolerance [mm]-0.3

Dimension L1 [mm]17

Dimension L2 [mm]17
