Bosch Rexroth R072722500

Torque-resistant linear bushing (with rotation ball bearing) Ball guide grooves = 4 Shaft diameter d = 25 With two seals Without shaft

Bosch RexrothMFR # R072722500SKU # YLSA1YBPB7ZBJR

Shaft diameter d [mm]25.0

VersionNormal

Format of linear bushingsLR - With rotation ball bearing

SeriesTorque

TypeLinear bushing

Seal2 integrated wiper seals

Have questions?Chat on WhatsApp

About This Product

Torque-resistant linear bushing (with rotation ball bearing) Ball guide grooves = 4 Shaft diameter d = 25 With two seals Without shaft

Bosch Rexroth R072722500

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]25.0

VersionNormal

Format of linear bushingsLR - With rotation ball bearing

SeriesTorque

TypeLinear bushing

Seal2 integrated wiper seals

LubricationNot lubricated

Raceway grooves4

Tightening torque [Nm]3.9

Note: Tightening torqueTightening torque at friction factor 0.125

Dynamic load capacity C [N]9800.0

Note: Dynamic load capacity CThe load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]3.0

Dynamic torsional moment load capacity Mt [Nm]129.0

Length of linear bushing [mm]70.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Weight [kg]0.8

Limit speed (grease) nmax1000

Note: Diameter dActual shaft diameter varies

Static load capacity C0 [N]16100.0

Note: Static load capacity C0The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.

Static torsional moment load capacity Mt0 [Nm]239

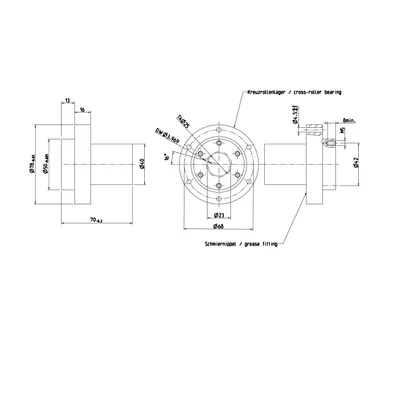

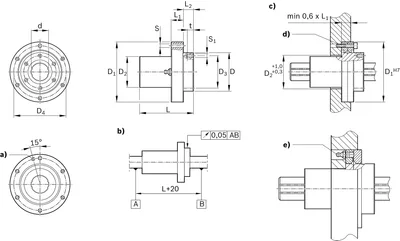

Shaft diameter, detailed [mm]23

Dimension D [mm]40

Dimension D1 [mm]78

Dimension D1 h7 [mm]78

Dimension D2 [mm]40

Dimension D3 [mm]42

Dimension D4 [mm]68

Dimension L [mm]70

Dimension L tolerance [mm]-0.3

Dimension L1 [mm]16

Dimension L2 [mm]13
