Bosch Rexroth
1516334008
MFR #1516334008
SKU #YLSHL3HMKHZCPRK
Photo may not represent actual item. Refer to name and product specs for all details.
Bosch Rexroth R072621000
Torque-resistant linear bushing (miniature flanged version)<br>Ball guide grooves = 4<br>Shaft diameter d = 10<br>With two seals<br>Without shaft
Shaft diameter d [mm]10.0
VersionNormal
Format of linear bushingsFM - Miniature flanged version
SeriesTorque
TypeLinear bushing
Seal2 integrated wiper seals
About This Product
Torque-resistant linear bushing (miniature flanged version)<br>Ball guide grooves = 4<br>Shaft diameter d = 10<br>With two seals<br>Without shaft
Bosch Rexroth R072621000
- Genuine, certified Bosch Rexroth product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Shaft diameter d [mm]10.0
VersionNormal
Format of linear bushingsFM - Miniature flanged version
SeriesTorque
TypeLinear bushing
Seal2 integrated wiper seals
LubricationNot lubricated
Raceway grooves4
Dynamic load capacity C [N]2170.0
Note: Dynamic load capacity CThe load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]150.0
Maximum permissible linear speed vmax [m/s]3.0
Dynamic torsional moment load capacity Mt [Nm]3.5
Length of linear bushing [mm]33.0
Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C
Weight [kg]0.09
Note: Diameter dActual shaft diameter varies
Static load capacity C0 [N]5070.0
Note: Static load capacity C0The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Static torsional moment load capacity Mt0 [Nm]8.2

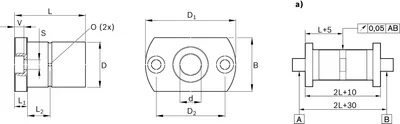

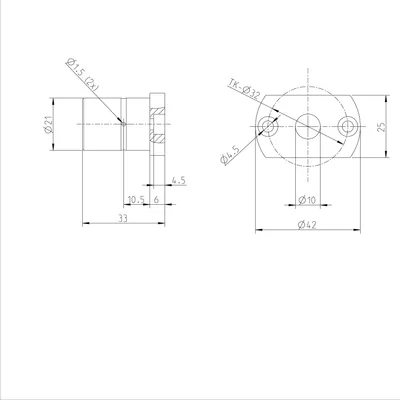

Shaft diameter, detailed [mm]10
Dimension B [mm]25
Dimension D [mm]21
Dimension D1 [mm]42
Dimension D h6 [mm]21
Dimension D2 [mm]32
Dimension L [mm]33
Dimension L tolerance [mm]-0.2
Dimension L1 [mm]6
Dimension L2 [mm]10.5
Dimension S [mm]4.5
Dimension V [mm]4.4
Documents & CAD
For this product 2
CAD Files 4
