Bosch Rexroth R072620800
Torque-resistant linear bushing (miniature flanged version)<br>Ball guide grooves = 4<br>Shaft diameter d = 8<br>With two seals<br>Without shaft
Shaft diameter d [mm]8.0
VersionNormal
Format of linear bushingsFM - Miniature flanged version
SeriesTorque
TypeLinear bushing
Seal2 integrated wiper seals
About This Product
Torque-resistant linear bushing (miniature flanged version)<br>Ball guide grooves = 4<br>Shaft diameter d = 8<br>With two seals<br>Without shaft
Bosch Rexroth R072620800
- Genuine, certified Bosch Rexroth product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Shaft diameter d [mm]8.0
VersionNormal
Format of linear bushingsFM - Miniature flanged version
SeriesTorque
TypeLinear bushing
Seal2 integrated wiper seals
LubricationNot lubricated
Raceway grooves4
Dynamic load capacity C [N]1150.0
Note: Dynamic load capacity CThe load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]150.0
Maximum permissible linear speed vmax [m/s]3.0
Dynamic torsional moment load capacity Mt [Nm]1.7
Length of linear bushing [mm]25.0
Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C
Weight [kg]0.05
Note: Diameter dActual shaft diameter varies
Static load capacity C0 [N]2870.0
Note: Static load capacity C0The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Static torsional moment load capacity Mt0 [Nm]3.7

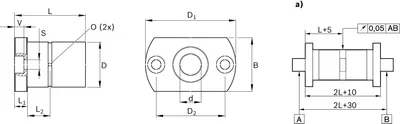

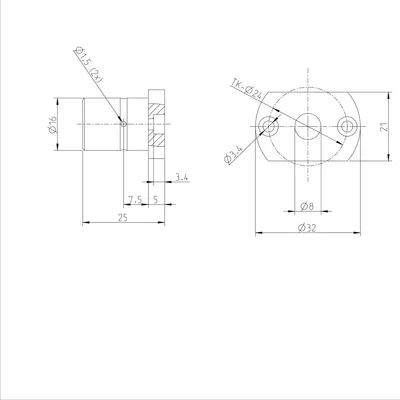

Shaft diameter, detailed [mm]8
Dimension B [mm]21
Dimension D [mm]16
Dimension D1 [mm]32
Dimension D h6 [mm]16
Dimension D2 [mm]24
Dimension L [mm]25
Dimension L tolerance [mm]-0.2
Dimension L1 [mm]5
Dimension L2 [mm]7.5
Dimension S [mm]3.4
Dimension V [mm]3.3
