Bosch Rexroth
1516334008
MFR #1516334008
SKU #YLSHL3HMKHZCPRK
Photo may not represent actual item. Refer to name and product specs for all details.
Bosch Rexroth R072521600
Torque-resistant linear bushing (flanged version)<br>Ball guide grooves = 4<br>Shaft diameter d = 16<br>With two seals<br>Without shaft
Shaft diameter d [mm]16.0
VersionNormal
Format of linear bushingsF - Flange
SeriesTorque
TypeLinear bushing
Seal2 integrated wiper seals
About This Product
Torque-resistant linear bushing (flanged version)<br>Ball guide grooves = 4<br>Shaft diameter d = 16<br>With two seals<br>Without shaft
Bosch Rexroth R072521600
- Genuine, certified Bosch Rexroth product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Shaft diameter d [mm]16.0
VersionNormal
Format of linear bushingsF - Flange
SeriesTorque
TypeLinear bushing
Seal2 integrated wiper seals
LubricationNot lubricated
Raceway grooves4
Dynamic load capacity C [N]4860.0
Note: Dynamic load capacity CThe load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]150.0
Maximum permissible linear speed vmax [m/s]3.0
Dynamic torsional moment load capacity Mt [Nm]48.0
Length of linear bushing [mm]50.0
Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C
Weight [kg]0.23
Note: Diameter dActual shaft diameter varies
Static load capacity C0 [N]11200.0
Note: Static load capacity C0The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Static torsional moment load capacity Mt0 [Nm]110

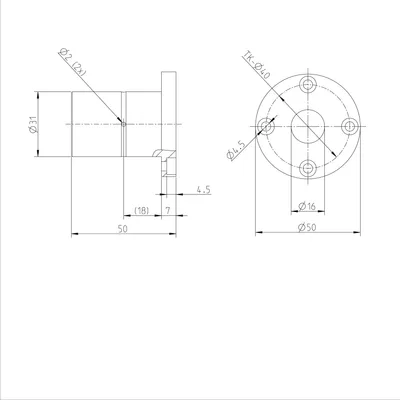

Shaft diameter, detailed [mm]16
Dimension D [mm]31
Dimension D1 [mm]50
Dimension D h6 [mm]31
Dimension D2 [mm]40
Dimension L [mm]50
Dimension L tolerance [mm]-0.2
Dimension L1 [mm]7
Dimension L2 [mm]18
Dimension S [mm]4.5
Dimension V [mm]4.4
