Bosch Rexroth R072422500
Torque-resistant linear bushing (cylindrical, sleeve design)<br>Ball guide grooves = 4<br>Shaft diameter d = 25<br>With two seals<br>Without shaft
Shaft diameter d [mm]25.0
VersionNormal
Format of linear bushingsH - Sleeve design
SeriesTorque
TypeLinear bushing
Seal2 integrated wiper seals
About This Product
Torque-resistant linear bushing (cylindrical, sleeve design)<br>Ball guide grooves = 4<br>Shaft diameter d = 25<br>With two seals<br>Without shaft
Bosch Rexroth R072422500
- Genuine, certified Bosch Rexroth product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Shaft diameter d [mm]25.0
VersionNormal
Format of linear bushingsH - Sleeve design
SeriesTorque
TypeLinear bushing
Seal2 integrated wiper seals
LubricationNot lubricated
Raceway grooves4
Dynamic load capacity C [N]9800.0
Note: Dynamic load capacity CThe load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]150.0
Maximum permissible linear speed vmax [m/s]3.0
Dynamic torsional moment load capacity Mt [Nm]129.0
Length of linear bushing [mm]70.0
Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C
Weight [kg]0.24
Note: Diameter dActual shaft diameter varies
Static load capacity C0 [N]16100.0
Note: Static load capacity C0The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Static torsional moment load capacity Mt0 [Nm]239

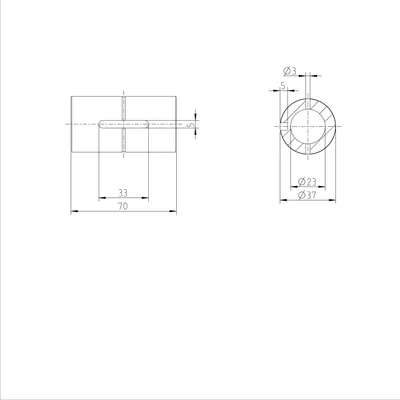

Shaft diameter, detailed [mm]23
Dimension b [mm]5
Dimension D [mm]37
Dimension D h6 [mm]37
Dimension L [mm]70
Dimension L tolerance [mm]-0.3
Dimension L1 [mm]33
Dimension t [mm]3
Dimension t1 [mm]5
Documents & CAD
For this product 2
CAD Files 2
