Bosch Rexroth R072354080

Linear set (steel) Compact LB, flange Ball guide grooves = 2 Shaft diameter d = 40 Shaft included 600 = standard length as per table Without seal Version: Standard

Bosch RexrothMFR # R072354080SKU # YLS4KEPEPKOAVX

Shaft diameter d [mm]40.0

Format of linear bushingsF - Flange

SeriesTorque

TypeLinear set

Dynamic load capacity C [N]6320.0

Maximum acceleration rate amax [m/s²]150.0

Have questions?Chat on WhatsApp

About This Product

Linear set (steel) Compact LB, flange Ball guide grooves = 2 Shaft diameter d = 40 Shaft included 600 = standard length as per table Without seal Version: Standard

Bosch Rexroth R072354080

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]40.0

Format of linear bushingsF - Flange

SeriesTorque

TypeLinear set

Dynamic load capacity C [N]6320.0

Note: Dynamic load capacity CThe load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]3.0

Dynamic torsional moment load capacity Mt [Nm]86.0

Mass m (kg/m) [kg/m]9.8

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Weight [kg]8.53

Static load capacity C0 [N]4350.0

Note: Static load capacity C0The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

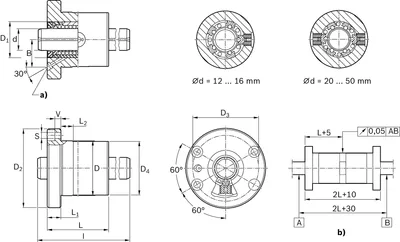

Dimension B [mm]41.7

Dimension D1 [mm]62

Dimension D h6 [mm]80

Dimension D2 [mm]114

Dimension D3 [mm]95

Dimension D4 [mm]80

Dimension L H11 [mm]92

Dimension L1 [mm]18

Dimension L2 [mm]16

Dimension S [mm]9

Dimension V [mm]7

Note: Standard length l of the shaft [mm]R.... ... 85: l = 900 mm, R.... ... 87: l = 1200 mm, R.... ... 88: l = 2000 mm

Standard length l of the shaft [mm]600

Documents & CAD

For this product 2

DatasheetLinear Bushings and ShaftsPDF·4.9 MB·Ge

DatasheetLinear bushingsPDF·23.7 MB·English

CAD Files 2

2D Drawing
