How can I get a price quote for Bosch Rexroth R072155088?

You can request a fast quote for Bosch Rexroth R072155088 from Yılsa Engineering. Reference part number YLSWDMIVDDGNMYN. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Bosch Rexroth R072155088 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Bosch Rexroth R072155088 genuine and new?

Yes. This Bosch Rexroth product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Bosch Rexroth R072155088?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Bosch Rexroth R072155088

Linear set (steel) Compact LB, sleeve design Ball guide grooves = 2 Shaft diameter d = 50 Shaft included 2000 = standard length as per table Without seal Version: Standard

Bosch RexrothMFR # R072155088SKU # YLSWDMIVDDGNMYN

Shaft diameter d [mm]50.0

Format of linear bushingsH - Sleeve design

SeriesTorque

TypeLinear set

Dynamic load capacity C [N]9250.0

Maximum acceleration rate amax [m/s²]150.0

Have questions?Chat on WhatsApp

About This Product

Linear set (steel) Compact LB, sleeve design Ball guide grooves = 2 Shaft diameter d = 50 Shaft included 2000 = standard length as per table Without seal Version: Standard

Bosch Rexroth R072155088

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]50.0

Format of linear bushingsH - Sleeve design

SeriesTorque

TypeLinear set

Dynamic load capacity C [N]9250.0

Note: Dynamic load capacity CThe load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]3.0

Dynamic torsional moment load capacity Mt [Nm]167.0

Mass m (kg/m) [kg/m]15.3

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Weight [kg]0.1

Static load capacity C0 [N]6470.0

Note: Static load capacity C0The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

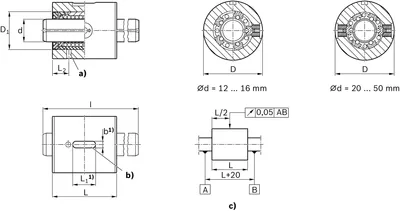

Dimension b P9 [mm]8

Dimension D1 [mm]75

Dimension D h6 [mm]100

Dimension L H11 [mm]114

Dimension L1 [mm]40

Dimension L2 [mm]22.5

Dimension t [mm]4

Note: Standard length l of the shaft [mm]R.... ... 85: l = 900 mm, R.... ... 87: l = 1200 mm, R.... ... 88: l = 2000 mm

Standard length l of the shaft [mm]600

Documents & CAD

For this product 2

DatasheetLinear Bushings and ShaftsPDF·4.9 MB·Ge

DatasheetLinear bushingsPDF·23.7 MB·English

CAD Files 2

2D Drawing
