Bosch Rexroth
1516334008
MFR #1516334008
SKU #YLSHL3HMKHZCPRK
Photo may not represent actual item. Refer to name and product specs for all details.
Bosch Rexroth R069604080
Torque-resistant linear bushing (standard)<br>Ball guide grooves = 1<br>Shaft diameter d = 40<br>Without seal<br>Shaft included<br>600 = standard length as per table
Shaft diameter d [mm]40.0
VersionNormal
Format of linear bushings– Closed
SeriesTorque
TypeLinear bushing
SealWithout wiper seals
About This Product
Torque-resistant linear bushing (standard)<br>Ball guide grooves = 1<br>Shaft diameter d = 40<br>Without seal<br>Shaft included<br>600 = standard length as per table
Bosch Rexroth R069604080
- Genuine, certified Bosch Rexroth product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Shaft diameter d [mm]40.0
VersionNormal
Format of linear bushings– Closed
SeriesTorque
TypeLinear bushing
SealWithout wiper seals
Raceway grooves1
Dynamic load capacity C [N]6320.0
Note: Dynamic load capacity CThe load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]150.0
Maximum permissible linear speed vmax [m/s]3.0
Dynamic torsional moment load capacity Mt [Nm]53.0
Length of linear bushing [mm]80.0
Outer diameter D [mm]62.0
Mass m (kg/m) [kg/m]9.8
Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C
Weight [kg]7.18
Static load capacity C0 [N]4350.0
Note: Static load capacity C0The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

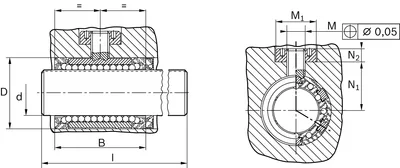

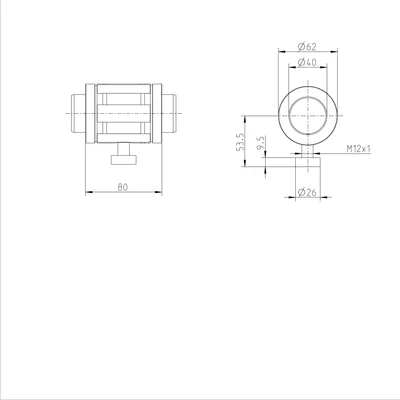

Dimension B [mm]80
Dimension D [mm]62
Dimension M1 [mm]26
Dimension N1 [mm]44
Dimension N2 [mm]9.5
Note: Standard length l of the shaft [mm]R.... ... 85: l = 900 mm, R.... ... 87: l = 1200 mm, R.... ... 88: l = 2000 mm
Standard length l of the shaft [mm]600
