Bosch Rexroth R067202000

Super linear bushing Super B (no self-alignment feature) Closed Shaft diameter d = 20 Without seal

Bosch RexrothMFR # R067202000SKU # YLSOEY00FLBPST1

Shaft diameter d [mm]20.0

VersionNormal

Format of linear bushings– Closed

SeriesSuper B (no self-alignment feature)

TypeLinear bushing

SealWithout wiper seals

Have questions?Chat on WhatsApp

About This Product

Super linear bushing Super B (no self-alignment feature) Closed Shaft diameter d = 20 Without seal

Bosch Rexroth R067202000

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]20.0

VersionNormal

Format of linear bushings– Closed

SeriesSuper B (no self-alignment feature)

TypeLinear bushing

SealWithout wiper seals

LubricationNot lubricated

Maximum dynamic load capacity Cmax [N]2470.0

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]3.0

Note: Maximum permissible speed vmaxSpeeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure.

Length of linear bushing [mm]45.0

Outer diameter D [mm]32.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Friction coefficient μ0.001 ... 0.0025

Note: Friction coefficient μFriction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load.

Weight [kg]0.07

Note: Breakaway forceOne wiper seal: Multiply value with factor 0.5

Note: Maximum dynamic load capacity CmaxThe dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.

Note: Minimum dynamic load capacity CminThe dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.

Note: Friction force FR1. One wiper seal: Multiply value with factor 0.5 2. Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.

Breakaway force [N]3

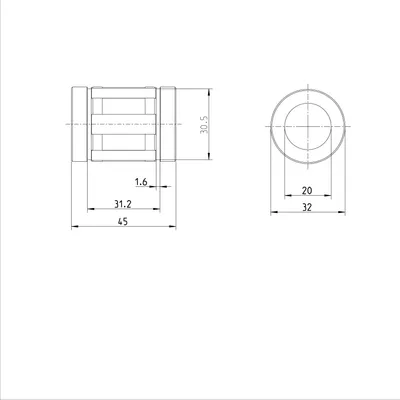

Dimension C h13 [mm]45

Dimension C1 H13 [mm]31.2

Dimension C2 [mm]1.6

Dimension D [mm]32

Dimension D1 [mm]30.5
