Bosch Rexroth R067112540

Super linear bushing Super A (with self-alignment feature) Open Shaft diameter d = 25 With one seal

Bosch RexrothMFR # R067112540SKU # YLSPMEGUQUNE0LN

Shaft diameter d [mm]25.0

VersionNormal

Format of linear bushingsO - Open

SeriesSuper A (with self-alignment feature)

TypeLinear bushing

Seal1 integrated wiper seal

Have questions?Chat on WhatsApp

About This Product

Super linear bushing Super A (with self-alignment feature) Open Shaft diameter d = 25 With one seal

Bosch Rexroth R067112540

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]25.0

VersionNormal

Format of linear bushingsO - Open

SeriesSuper A (with self-alignment feature)

TypeLinear bushing

Seal1 integrated wiper seal

LubricationNot lubricated

Dynamic load capacity C [N]4130.0

Note: Dynamic load capacity CThe load capacities apply for the main direction of loading.

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]3.0

Note: Maximum permissible speed vmaxSpeeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure.

Length of linear bushing [mm]58.0

Outer diameter D [mm]40.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Friction coefficient μ0.001 ... 0.0025

Note: Friction coefficient μFriction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load.

Weight [kg]0.12

Static load capacity C0 [N]2250.0

Note: Static load capacity C0The load capacities apply for the main direction of loading.

Note: Breakaway forceOne wiper seal: Multiply value with factor 0.5

Note: Friction force FROne wiper seal: Multiply value with factor 0.5

Breakaway force [N]4.5

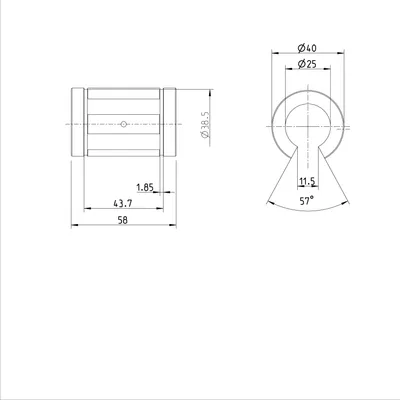

Dimension C h13 [mm]58

Dimension C1 H13 [mm]43.7

Dimension C2 [mm]1.85

Dimension D [mm]40

Dimension E [mm]11.5

Note: Dimension ELower limit relative to Ø d.
