Bosch Rexroth R067011640

Super linear bushing Super A (with self-alignment feature) Closed Shaft diameter d = 16 With one seal

Bosch RexrothMFR # R067011640SKU # YLSAL4E0XYCACSI

Shaft diameter d [mm]16.0

VersionNormal

Format of linear bushings– Closed

SeriesSuper A (with self-alignment feature)

TypeLinear bushing

Seal1 integrated wiper seal

Have questions?Chat on WhatsApp

About This Product

Super linear bushing Super A (with self-alignment feature) Closed Shaft diameter d = 16 With one seal

Bosch Rexroth R067011640

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]16.0

VersionNormal

Format of linear bushings– Closed

SeriesSuper A (with self-alignment feature)

TypeLinear bushing

Seal1 integrated wiper seal

LubricationNot lubricated

Maximum dynamic load capacity Cmax [N]1400.0

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]3.0

Note: Maximum permissible speed vmaxSpeeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure.

Length of linear bushing [mm]36.0

Outer diameter D [mm]26.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Friction coefficient μ0.001 ... 0.0025

Note: Friction coefficient μFriction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load.

Weight [kg]0.04

Note: Breakaway forceOne wiper seal: Multiply value with factor 0.5

Note: Maximum dynamic load capacity CmaxThe dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.

Note: Minimum dynamic load capacity CminThe dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.

Note: Friction force FROne wiper seal: Multiply value with factor 0.5

Breakaway force [N]2

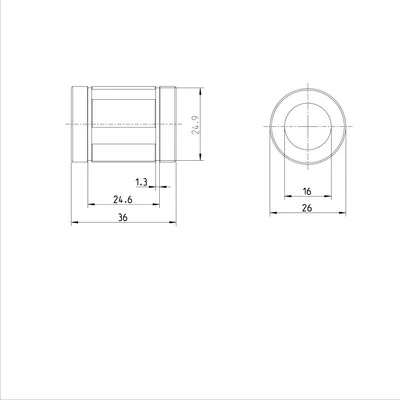

Dimension C h13 [mm]36

Dimension C1 H13 [mm]24.6

Dimension C2 [mm]1.3

Dimension D [mm]26

Dimension D1 [mm]24.9
