Bosch Rexroth R066700800

Rotary motion linear bushing Needle bearing Shaft diameter d = 8 With two seals

Bosch RexrothMFR # R066700800SKU # YLSJ6WAGNBQNWYJ

Shaft diameter d [mm]8.0

VersionNormal

Format of linear bushingsN - With needle bearing

TypeLinear bushing

Seal2 integrated wiper seals

LubricationNot lubricated

Have questions?Chat on WhatsApp

About This Product

Rotary motion linear bushing Needle bearing Shaft diameter d = 8 With two seals

Bosch Rexroth R066700800

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]8.0

VersionNormal

Format of linear bushingsN - With needle bearing

SeriesCombined linear and rotary motion (rotation)

TypeLinear bushing

Seal2 integrated wiper seals

LubricationNot lubricated

Dynamic load capacity C [N]320.0

Note: Dynamic load capacity CThe load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.

Maximum acceleration rate amax [m/s²]100.0

Maximum permissible linear speed vmax [m/s]2.5

Length of linear bushing [mm]25.0

Outer diameter D [mm]24.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Weight [kg]0.05

Static load capacity C0 [N]240.0

Note: Static load capacity C0The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.

Note: Retaining ringSeeger-Orbis GmbH

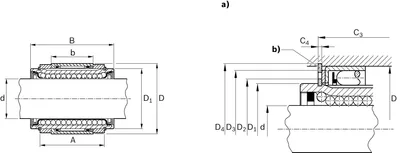

Dimension A [mm]14.1

Dimension B [mm]25

Dimension b [mm]13

Dimension C3 H12 [mm]16.5

Dimension C4 H13 [mm]1.3

Dimension D [mm]24

Dimension D1 [mm]16

Dimension D2 [mm]19.3

Dimension D3 [mm]23
