Bosch Rexroth R066328000

Rotary motion linear bushing With deep-groove ball bearing Shaft diameter d = 80 With two seals

Bosch RexrothMFR # R066328000SKU # YLSXPH8A1WVTG

Shaft diameter d [mm]80.0

VersionNormal

TypeLinear bushing

Seal2 integrated wiper seals

LubricationNot lubricated

Dynamic load capacity C [N]21000.0

Have questions?Chat on WhatsApp

About This Product

Rotary motion linear bushing With deep-groove ball bearing Shaft diameter d = 80 With two seals

Bosch Rexroth R066328000

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]80.0

VersionNormal

Format of linear bushingsR - With deep-groove ball bearing (series 618)

SeriesCombined linear and rotary motion (rotation)

TypeLinear bushing

Seal2 integrated wiper seals

LubricationNot lubricated

Dynamic load capacity C [N]21000.0

Note: Dynamic load capacity CThe load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.

Maximum acceleration rate amax [m/s²]50.0

Maximum permissible linear speed vmax [m/s]2.0

Length of linear bushing [mm]165.0

Outer diameter D [mm]150.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Weight [kg]5.3

Static load capacity C0 [N]16300.0

Note: Static load capacity C0The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.

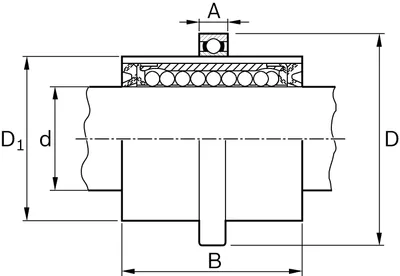

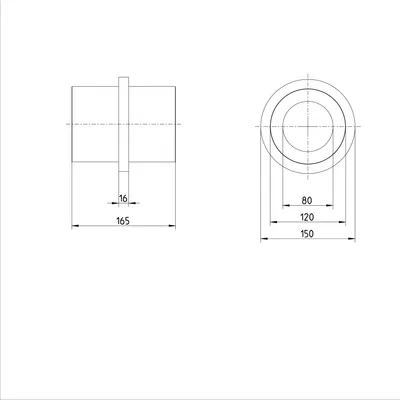

Dimension A [mm]16

Dimension B [mm]165

Dimension D [mm]150

Dimension D1 [mm]120
