How can I get a price quote for Bosch Rexroth R066326000?

You can request a fast quote for Bosch Rexroth R066326000 from Yılsa Engineering. Reference part number YLSVXURM20ZKQ2H. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Bosch Rexroth R066326000 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Bosch Rexroth R066326000 genuine and new?

Yes. This Bosch Rexroth product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Bosch Rexroth R066326000?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Bosch Rexroth R066326000

Rotary motion linear bushing With deep-groove ball bearing Shaft diameter d = 60 With two seals

Bosch RexrothMFR # R066326000SKU # YLSVXURM20ZKQ2H

Shaft diameter d [mm]60.0

VersionNormal

TypeLinear bushing

Seal2 integrated wiper seals

LubricationNot lubricated

Dynamic load capacity C [N]11500.0

Have questions?Chat on WhatsApp

About This Product

Rotary motion linear bushing With deep-groove ball bearing Shaft diameter d = 60 With two seals

Bosch Rexroth R066326000

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]60.0

VersionNormal

Format of linear bushingsR - With deep-groove ball bearing (series 618)

SeriesCombined linear and rotary motion (rotation)

TypeLinear bushing

Seal2 integrated wiper seals

LubricationNot lubricated

Dynamic load capacity C [N]11500.0

Note: Dynamic load capacity CThe load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.

Maximum acceleration rate amax [m/s²]50.0

Maximum permissible linear speed vmax [m/s]2.0

Length of linear bushing [mm]125.0

Outer diameter D [mm]115.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Weight [kg]2.35

Static load capacity C0 [N]9160.0

Note: Static load capacity C0The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.

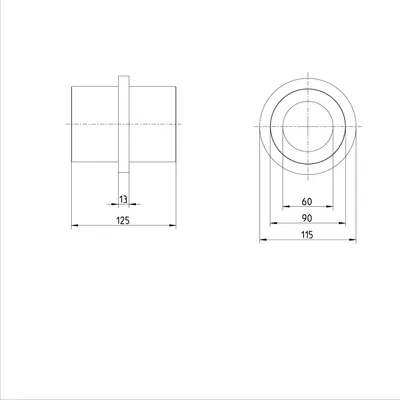

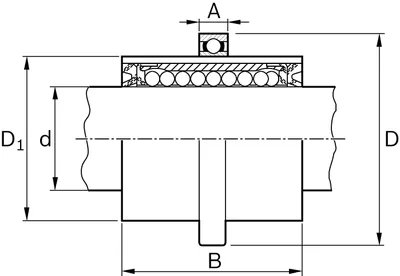

Dimension A [mm]13

Dimension B [mm]125

Dimension D [mm]115

Dimension D1 [mm]90
