Bosch Rexroth R066323000

Rotary motion linear bushing With deep-groove ball bearing Shaft diameter d = 30 With two seals

Bosch RexrothMFR # R066323000SKU # YLSRXZFKLKXK3T

Shaft diameter d [mm]30.0

VersionNormal

TypeLinear bushing

Seal2 integrated wiper seals

LubricationNot lubricated

Dynamic load capacity C [N]2390.0

Have questions?Chat on WhatsApp

About This Product

Rotary motion linear bushing With deep-groove ball bearing Shaft diameter d = 30 With two seals

Bosch Rexroth R066323000

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]30.0

VersionNormal

Format of linear bushingsR - With deep-groove ball bearing (series 618)

SeriesCombined linear and rotary motion (rotation)

TypeLinear bushing

Seal2 integrated wiper seals

LubricationNot lubricated

Dynamic load capacity C [N]2390.0

Note: Dynamic load capacity CThe load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]3.0

Length of linear bushing [mm]54.0

Outer diameter D [mm]65.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Weight [kg]0.43

Static load capacity C0 [N]1960.0

Note: Static load capacity C0The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.

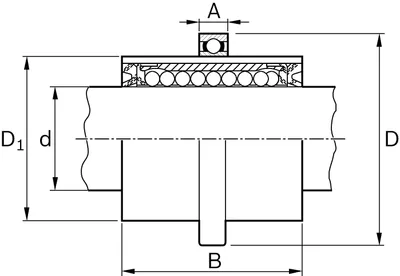

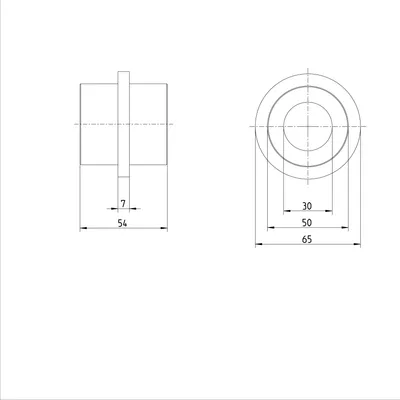

Dimension A [mm]7

Dimension B [mm]54

Dimension D [mm]65

Dimension D1 [mm]50
