How can I get a price quote for Bosch Rexroth R065825534?

You can request a fast quote for Bosch Rexroth R065825534 from Yılsa Engineering. Reference part number YLSQNUIV4WJTSLL. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Bosch Rexroth R065825534 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Bosch Rexroth R065825534 genuine and new?

Yes. This Bosch Rexroth product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Bosch Rexroth R065825534?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Bosch Rexroth R065825534

Linear bushing eLINE Compact (C) Shaft diameter d = 30 With two seals Radial clearance: Reduced Version: Corrosion-resistant Greased

Bosch RexrothMFR # R065825534SKU # YLSQNUIV4WJTSLL

Shaft diameter d [mm]30.0

VersionCorrosion-resistant

Format of linear bushings– Closed

SeriesCompact (eLINE)

TypeLinear bushing

Seal2 integrated wiper seals

Have questions?Chat on WhatsApp

About This Product

Linear bushing eLINE Compact (C) Shaft diameter d = 30 With two seals Radial clearance: Reduced Version: Corrosion-resistant Greased

Bosch Rexroth R065825534

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]30.0

VersionCorrosion-resistant

Format of linear bushings– Closed

SeriesCompact (eLINE)

TypeLinear bushing

Seal2 integrated wiper seals

LubricationGreased

Dynamic load capacity C [N]2700.0

Maximum dynamic load capacity Cmax [N]2700.0

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]5.0

Radial clearanceReduced radial clearance

Length of linear bushing [mm]50.0

Outer diameter D [mm]40.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Weight [kg]0.09

Static load capacity C0 [N]2230.0

Note: Maximum dynamic load capacity CmaxThe dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.

Note: Minimum dynamic load capacity CminThe dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.

Note: Friction force FRFrictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.

Breakaway force [N]6

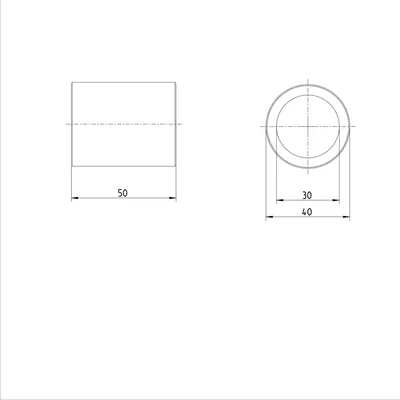

Dimension C [mm]50

Dimension D [mm]40

Dimension d [mm]30
