Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Bosch Rexroth R065825244

Linear bushing eLINE Compact Shaft diameter d = 16 With two seals Radial clearance: Reduced Version: Standard Greased

Bosch RexrothMFR # R065825244SKU # YLSURQ9QT8O4UMJ

Shaft diameter d [mm]16.0

VersionNormal

Format of linear bushings– Closed

SeriesCompact (eLINE)

TypeLinear bushing

Seal2 integrated wiper seals

Have questions?Chat on WhatsApp

About This Product

Linear bushing eLINE Compact Shaft diameter d = 16 With two seals Radial clearance: Reduced Version: Standard Greased

Bosch Rexroth R065825244

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]16.0

VersionNormal

Format of linear bushings– Closed

SeriesCompact (eLINE)

TypeLinear bushing

Seal2 integrated wiper seals

LubricationGreased

Maximum dynamic load capacity Cmax [N]1120.0

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]5.0

Radial clearanceReduced radial clearance

Length of linear bushing [mm]30.0

Outer diameter D [mm]24.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Weight [kg]0.03

Note: Maximum dynamic load capacity CmaxThe dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.

Note: Minimum dynamic load capacity CminThe dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.

Note: Friction force FRFrictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.

Breakaway force [N]2

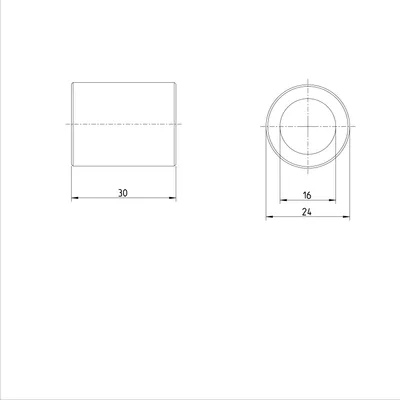

Dimension C [mm]30

Dimension D [mm]24

Dimension d [mm]16
