Bosch Rexroth R065811030

Compact linear bushing Shaft diameter d = 10 With one seal Radial clearance: Standard Version: Rust-resistant Not greased

Bosch RexrothMFR # R065811030SKU # YLSATIPWLMYXKX7

Shaft diameter d [mm]10.0

VersionCorrosion-resistant

Format of linear bushings– Closed

SeriesCompact

Seal1 integrated wiper seal

LubricationNot lubricated

Have questions?Chat on WhatsApp

About This Product

Compact linear bushing Shaft diameter d = 10 With one seal Radial clearance: Standard Version: Rust-resistant Not greased

Bosch Rexroth R065811030

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]10.0

VersionCorrosion-resistant

Format of linear bushings– Closed

SeriesCompact

Seal1 integrated wiper seal

LubricationNot lubricated

Maximum dynamic load capacity Cmax [N]500.0

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]5.0

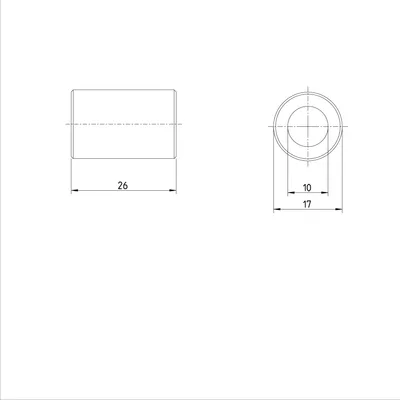

Length of linear bushing [mm]26.0

Outer diameter D [mm]17.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Friction coefficient μ0.001 ... 0.004

Note: Friction coefficient μFriction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load.

Weight [kg]0.02

Note: Breakaway forceOne wiper seal: Multiply value with factor 0.5

Note: Maximum dynamic load capacity CmaxThe dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.

Note: Minimum dynamic load capacity CminThe dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.

Note: Friction force FROne wiper seal: Multiply value with factor 0.5

Breakaway force [N]1

Dimension C [mm]26

Dimension D [mm]17
