How can I get a price quote for Bosch Rexroth R061030800?

You can request a fast quote for Bosch Rexroth R061030800 from Yılsa Engineering. Reference part number YLSD2OAKREIAOGC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Bosch Rexroth R061030800 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Bosch Rexroth R061030800 genuine and new?

Yes. This Bosch Rexroth product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Bosch Rexroth R061030800?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Bosch Rexroth R061030800

"Standard linear bushing Standard (metal) Adjustable Shaft diameter d = 8 Without seal Design: normal"

Bosch RexrothMFR # R061030800SKU # YLSD2OAKREIAOGC

Shaft diameter d [mm]8.0

VersionNormal

Format of linear bushingsE - Adjustable

SeriesStandard (metal)

TypeLinear bushing

SealWithout wiper seals

Have questions?Chat on WhatsApp

About This Product

"Standard linear bushing Standard (metal) Adjustable Shaft diameter d = 8 Without seal Design: normal"

Bosch Rexroth R061030800

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]8.0

VersionNormal

Format of linear bushingsE - Adjustable

SeriesStandard (metal)

TypeLinear bushing

SealWithout wiper seals

LubricationNot lubricated

Maximum dynamic load capacity Cmax [N]370.0

Maximum acceleration rate amax [m/s²]100.0

Maximum permissible linear speed vmax [m/s]2.5

Length of linear bushing [mm]25.0

Outer diameter D [mm]16.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Note: Permissible ambient temperature (min. ... max.)Higher temperatures are only admissible at linear bushings without wiper seals with ball retainers made of steel. Make allowance for reductions in load capacity.

Friction coefficient μ0.001 ... 0.004

Note: Friction coefficient μFriction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load.

Weight [kg]0.02

Note: Breakaway forceOne wiper seal: Multiply value with factor 0.5

Note: Maximum dynamic load capacity CmaxThe dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.

Note: Minimum dynamic load capacity CminThe dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.

Note: Friction force FROne wiper seal: Multiply value with factor 0.5

Breakaway force [N]1

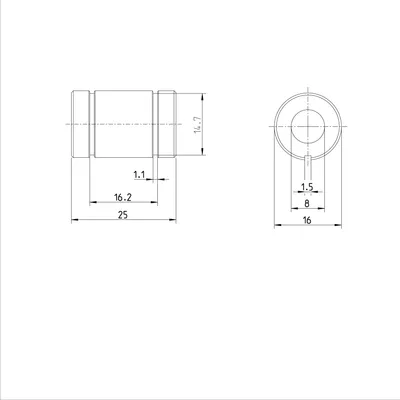

Dimension C h12 [mm]25

Dimension C1 H13 [mm]16.2

Dimension C2 [mm]1.1

Dimension D [mm]16

Dimension D1 [mm]14.7

Dimension E [mm]1.5
