Bosch Rexroth R060000530

"Standard linear bushing Standard (metal) Closed Shaft diameter d = 5 Without seal Design: corrosion-resistant"

Bosch RexrothMFR # R060000530SKU # YLSUCN5XF6WZIAU

Shaft diameter d [mm]5.0

VersionCorrosion-resistant

Format of linear bushings– Closed

SeriesStandard (metal)

TypeLinear bushing

SealWithout wiper seals

Have questions?Chat on WhatsApp

About This Product

"Standard linear bushing Standard (metal) Closed Shaft diameter d = 5 Without seal Design: corrosion-resistant"

Bosch Rexroth R060000530

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]5.0

VersionCorrosion-resistant

Format of linear bushings– Closed

SeriesStandard (metal)

TypeLinear bushing

SealWithout wiper seals

LubricationNot lubricated

Maximum dynamic load capacity Cmax [N]185.0

Maximum acceleration rate amax [m/s²]100.0

Maximum permissible linear speed vmax [m/s]2.5

Length of linear bushing [mm]22.0

Outer diameter D [mm]12.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Note: Permissible ambient temperature (min. ... max.)Higher temperatures are only admissible at linear bushings without wiper seals with ball retainers made of steel. Make allowance for reductions in load capacity.

Friction coefficient μ0.001 ... 0.004

Note: Friction coefficient μFriction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load.

Weight [kg]0.02

Note: Breakaway forceOne wiper seal: Multiply value with factor 0.5

Note: Maximum dynamic load capacity CmaxThe dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.

Note: Minimum dynamic load capacity CminThe dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.

Note: Shaft radial clearance h6Determined from working bore diameter and shaft tolerance statistics. Recommended housing bore tolerance: H6 or H7.

Note: Friction force FROne wiper seal: Multiply value with factor 0.5

Breakaway force [N]0.8

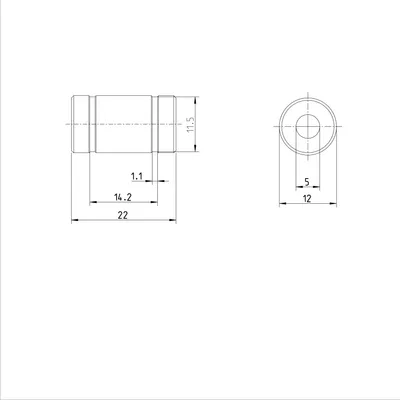

Dimension C h12 [mm]22

Dimension C1 H13 [mm]14.2

Dimension C2 [mm]1.1

Dimension D [mm]12

Dimension D1 [mm]11.5
