Bosch Rexroth R036470000

Compact modules with ball rail systems and toothed belt drive, size 280, standard version

Bosch RexrothMFR # R036470000SKU # YLS2NFF7HIV9WDU

Nominal size [mm]CKR-280

Linear axes variantToothed belt drive

Minimum travel range smin [mm]195

Maximum acceleration rate amax [m/s²]50.0

Max. length Lmax [mm]5500.0

Dynamic load capacity, guideway Cgw [N]216700

Have questions?Chat on WhatsApp

About This Product

Compact modules with ball rail systems and toothed belt drive, size 280, standard version

Bosch Rexroth R036470000

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size [mm]CKR-280

Linear axes variantToothed belt drive

Minimum travel range smin [mm]195

Note: Minimum travel range sminMinimum required travel range to ensure a reliable lubrication distribution.

Maximum acceleration rate amax [m/s²]50.0

Maximum permissible linear speed vmax [m/s]5.0

Max. length Lmax [mm]5500.0

Dynamic load capacity, guideway Cgw [N]216700

Dynamic torsional moment load capacity Mt [Nm]19500.0

Dynamic longitudinal moment load capacity ML [Nm]21670.0

Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm]5400

Maximum permissible dynamic torsional moment about the y-axis My max [Nm]6000

Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm]5517

Maximum dynamic load in y-direction Fy max [N]55170

Maximum dynamic load in z1-direction Fz1 max [N]86685

Maximum dynamic load in z2-direction Fz2 max [N]60000

Planar moment of inertia about the y-axis ly [cm⁴]2242

Planar moment of inertia about the z-axis lz [cm⁴]15802

Permissible ambient temperature with Rexroth servo motor (min. ... max.)0 °C ... +40 °C

Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.)loss of performance at 40 °C or higher

Permissible ambient temperature mechanics (min. … max.)-10 °C ... +60 °C

Note: Permissible ambient temperature mechanics (min. … max.)No dropping below dew point

Weight [kg]0

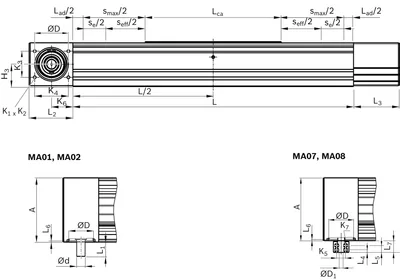

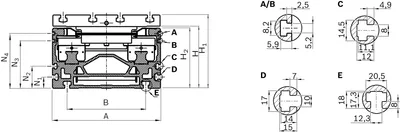

Dimension A [mm]280

Dimension B [mm]204

Dimension d h6 [mm]35

Dimension d H7 [mm]120

Dimension D1 H7 [mm]25

Dimension H [mm]160.0

Dimension H1 [mm]190

Dimension H2 [mm]156

Dimension H3 [mm]79.5

Dimension K1M12

Dimension K2 thread depth [mm]28

Dimension K3 [mm]93

Dimension K4 [mm]120

Dimension K5 [mm]40

Dimension K5 tolerance [mm]±0.1

Dimension K6 [mm]76

Dimension K7M10

Dimension L1 [mm]72

Dimension L2 [mm]156

Dimension L3 [mm]164

Dimension L4 [mm]11

Dimension L5 [mm]20

Dimension L6 [mm]4

Dimension L7 [mm]52

Dimension N1 [mm]29

Dimension N2 [mm]57

Dimension N3 [mm]123

Dimension N4 [mm]142

Note dimension K7ISO 4762

Documents & CAD

For this product 4

DatasheetSafety instructions for linear axes and electromechanical cylindersPDF·Al

DatasheetDeclaration of IncorporationPDF·English

DatasheetCompact modules CKK/CKRPDF·English
