How can I get a price quote for Bosch Rexroth R036460000?

You can request a fast quote for Bosch Rexroth R036460000 from Yılsa Engineering. Reference part number YLSM6OVYN6R0IE. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Bosch Rexroth R036460000 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Bosch Rexroth R036460000 genuine and new?

Yes. This Bosch Rexroth product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Bosch Rexroth R036460000?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Bosch Rexroth R036460000

Compact modules with ball rail systems and toothed belt drive, size 200, standard version

Bosch RexrothMFR # R036460000SKU # YLSM6OVYN6R0IE

Nominal size [mm]CKR-200

Linear axes variantToothed belt drive

Minimum travel range smin [mm]80

Maximum acceleration rate amax [m/s²]50.0

Max. length Lmax [mm]10000.0

Dynamic load capacity, guideway Cgw [N]121185

Have questions?Chat on WhatsApp

About This Product

Compact modules with ball rail systems and toothed belt drive, size 200, standard version

Bosch Rexroth R036460000

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size [mm]CKR-200

Linear axes variantToothed belt drive

Minimum travel range smin [mm]80

Note: Minimum travel range sminMinimum required travel range to ensure a reliable lubrication distribution.

Maximum acceleration rate amax [m/s²]50.0

Maximum permissible linear speed vmax [m/s]5.0

Max. length Lmax [mm]10000.0

Dynamic load capacity, guideway Cgw [N]121185

Dynamic torsional moment load capacity Mt [Nm]7877.0

Dynamic longitudinal moment load capacity ML [Nm]10604.0

Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm]2750

Maximum permissible dynamic torsional moment about the y-axis My max [Nm]3701

Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm]1744

Maximum dynamic load in y-direction Fy max [N]19925

Maximum dynamic load in z1-direction Fz1 max [N]42300

Maximum dynamic load in z2-direction Fz2 max [N]42300

Planar moment of inertia about the y-axis ly [cm⁴]500.8

Planar moment of inertia about the z-axis lz [cm⁴]4022

Permissible ambient temperature with Rexroth servo motor (min. ... max.)0 °C ... +40 °C

Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.)Loss of performance at 40 °C or higher

Permissible ambient temperature mechanics (min. … max.)-10 °C ... +60 °C

Note: Permissible ambient temperature mechanics (min. … max.)No dropping below dew point

Weight [kg]0

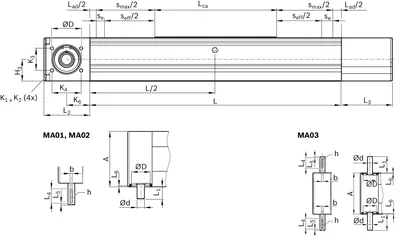

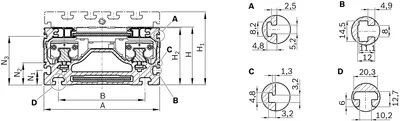

Dimension A [mm]200

Dimension B [mm]150

Dimension b P9 [mm]8

Dimension d h6 [mm]24

Dimension d H7 [mm]68

Dimension h [mm]4

Dimension H [mm]100.0

Dimension H1 [mm]127

Dimension H2 [mm]98.5

Dimension H3 [mm]49.25

Dimension K1M8

Dimension K2 thread depth [mm]15

Dimension K3 [mm]50

Dimension K4 [mm]66

Dimension K6 [mm]53

Dimension L1 [mm]61

Dimension L2 [mm]104

Dimension L3 [mm]115

Dimension L4 [mm]40

Dimension L5 [mm]3

Dimension L6 [mm]2.5

Dimension N1 [mm]25

Dimension N2 [mm]38

Dimension N3 [mm]84

Documents & CAD

For this product 4

DatasheetSafety instructions for linear axes and electromechanical cylindersPDF·Al

DatasheetDeclaration of IncorporationPDF·English

DatasheetCompact modules CKK/CKRPDF·English
