Bosch Rexroth R036450000

Compact modules with ball rail systems and toothed belt drive, size 145, standard version

Bosch RexrothMFR # R036450000SKU # YLSDEN7L2HRNCJ0

Nominal size [mm]CKR-145

Linear axes variantToothed belt drive

Minimum travel range smin [mm]60

Maximum acceleration rate amax [m/s²]50.0

Max. length Lmax [mm]5500.0

Dynamic load capacity, guideway Cgw [N]76025

Have questions?Chat on WhatsApp

About This Product

Compact modules with ball rail systems and toothed belt drive, size 145, standard version

Bosch Rexroth R036450000

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size [mm]CKR-145

Linear axes variantToothed belt drive

Minimum travel range smin [mm]60

Note: Minimum travel range sminMinimum required travel range to ensure a reliable lubrication distribution.

Maximum acceleration rate amax [m/s²]50.0

Maximum permissible linear speed vmax [m/s]5.0

Max. length Lmax [mm]5500.0

Dynamic load capacity, guideway Cgw [N]76025

Dynamic torsional moment load capacity Mt [Nm]3345.0

Dynamic longitudinal moment load capacity ML [Nm]3801.0

Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm]1267

Maximum permissible dynamic torsional moment about the y-axis My max [Nm]1440

Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm]683

Maximum dynamic load in y-direction Fy max [N]13660

Maximum dynamic load in z1-direction Fz1 max [N]28800

Maximum dynamic load in z2-direction Fz2 max [N]28800

Planar moment of inertia about the y-axis ly [cm⁴]91.28

Planar moment of inertia about the z-axis lz [cm⁴]1049

Permissible ambient temperature with Rexroth servo motor (min. ... max.)0 °C ... +40 °C

Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.)Loss of performance at 40 °C or higher

Permissible ambient temperature mechanics (min. … max.)-10 °C ... +60 °C

Note: Permissible ambient temperature mechanics (min. … max.)No dropping below dew point

Weight [kg]0

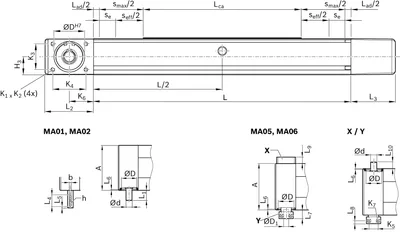

Dimension A [mm]145

Dimension b P9 [mm]6

Dimension d h7 [mm]19

Dimension d H7 [mm]49

Dimension D1 H7 [mm]24

Dimension h [mm]3.5

Dimension H [mm]65.0

Dimension H1 [mm]85

Dimension H2 [mm]64

Dimension H3 [mm]32

Dimension K1M6

Dimension K2 thread depth [mm]12

Dimension K3 [mm]45

Dimension K4 [mm]45

Dimension K5 [mm]30.5

Dimension K5 tolerance [mm]±0.1

Dimension K6 [mm]30

Dimension K7M5

Dimension L1 [mm]61

Dimension L10 [mm]17.5

Dimension L2 [mm]64

Dimension L3 [mm]71.5

Dimension L4 [mm]40

Dimension L5 [mm]2

Dimension L6 [mm]2.5

Dimension L7 [mm]27.5

Dimension L8 [mm]9

Dimension L8 tolerance [mm]±0.1

Dimension L9 [mm]20

Dimension N1 [mm]9.5

Note dimension K7ISO 4762

Note: Dimension D1 H7recommended shaft fit k6

Documents & CAD

For this product 4

DatasheetSafety instructions for linear axes and electromechanical cylindersPDF·Al

DatasheetDeclaration of IncorporationPDF·English

DatasheetCompact modules CKK/CKRPDF·English
